M5 IP68 DMR Portable Radio

M5

M5 is a professional DMR radio, it's available in DMR Tier 2 and analog, it supports ARC4 and AES encryption algorithm and 256-digit dynamic encryption keys to secure communication. M5 are widely used by manufacturing, production, operations, quality control, and safety professionals across the country in a wide variety of industries to improve operational efficiencies and worker safety.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

Digital and Analogue Dual Mode

The M5 digital two way radio can be used in both digital and analogue mode at the same time and can scan both zones at once. This allows an organization to operate both digital and analogue two way radios in their fleets.



IP68 Waterproofing and Dust-tight Protection

The M5 can withstand 1.2m depth of water for 30 minutes. This rugged construction provides dust-tight protection making it suitable for outdoor use or places prone to getting wet.



Advanced encryption

Adopts ARC4 & #AES256 encryption to secure communication privacy and optimize information safety.



DMO 2 Slot / DMRA Direct Mode

The free slot can be allocated to enhance frequency efficiency and timely response under emergency.



1.77 inch Color Screen

It carry with a large screen and intuitive UI to make the operation more easier and efficient.



Background Noise Cancellation

The advanced Background Noise Cancellation technologies, ensure the same clear voice within the communication coverage.



Enhanced User Experience

The M5 includes a range of great quality-of-life features. The interface is ergonomically designed to fit comfortably in the hand, for easy use.



Outstanding Audio Quality

Hear and be heard in noisy environments like construction sites using crystal-clear digital technology and a powerful speaker.



CTCSS, DTCS and Common ID for Group Call

Similar to analogue CTCSS and DTCS codes, the digital Common ID also can be used for a group call. These codes and ID can be programmed to the 16 position rotary selector for instant call capability.



Voice Announcement Function

When you rotate the rotary selector, the radio announces selected the channel number and Common ID.

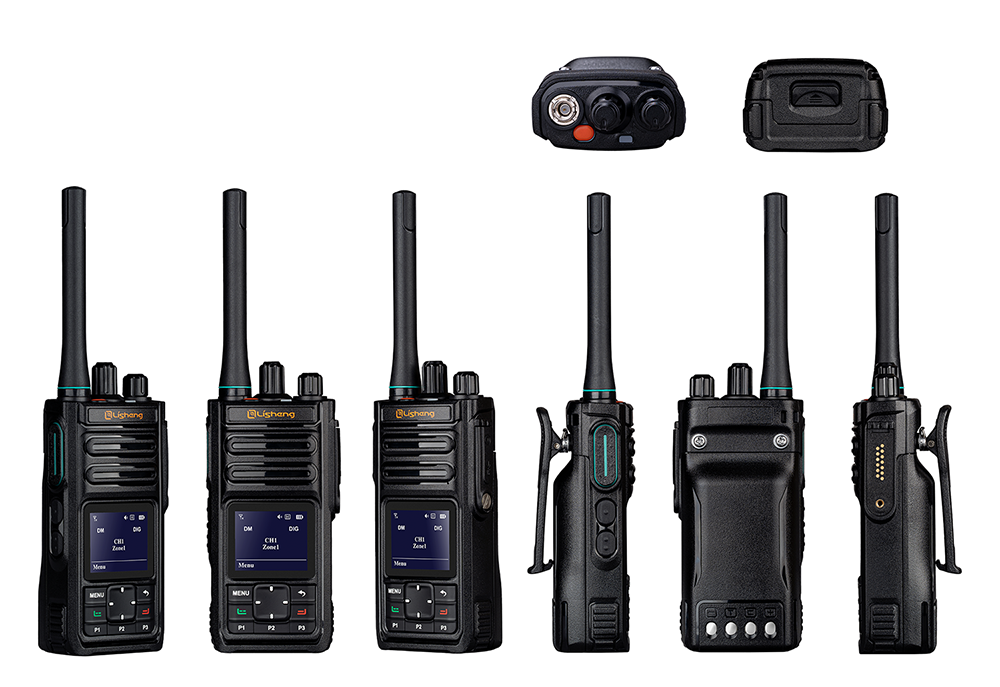

Appearance Introduction


Product Accessories

  • Hand Strap

    Hand Strap

  • Antenna

    Antenna

  • Charger Pod

    Charger Pod

  • Charger

    Charger

  • Belt Clip

    Belt Clip

  • Battery

    Battery

General
Frequecy 136-174/350-400/
400~470MHz
Channel Capacity 1024
Channel Spacing 12.5kHz/25KHz(Analog)12.5KHz(Digital)
Frequency Stability ±1.0 ppm
Normal Operating
Voltage
7.4V
Operating
Temperature
-20℃~+55℃
Store Temperature -40℃~+60℃
Dimension 134*61*39mm
Waterproof and
Dustproof
IP68
TX Output Power High:5W   Low:1W
Receiver
Frequency Stability +/-1.0ppm
Analog Sensitivity 0.22uV/-120dBm(12dB SINAD)
Digital Sensitivity 0.3uV/-117.4dBm(5% BER)
Intermodulation 55dB
Adjacent Channel
Selectivity
TIA603C:≥55dB@12.5KHz
ETSI: ≥55dB@12.5KHz
Spurious Response
Rejection
 60dB
SNR -40 dB@12.5KHz /-45 dB@25KHz

Receiving audio

rating power

≥0.5W

Receiving audio

MAX. Power

≥1W
Audio Distortion ≤3%(Typical value)

Conducted emission

spurious

-57 dBm
Transmitter

Output power (low power)

1W±0.3

Output power (high power)

5W±0.5

FM Modulation

12.5KHz 11K0F3E / 25KHz16K0F3E

4FSK Digital Modulation

12.5KHz data only 7K60F1D&7K60FXD

12.5KHz voice only 7K60F1E&7K60FXE

12.5KHz voice and data7K60FXW

Conduction/radiation emission

-21dBm

Modulation Limiting

±2.5KHz @12.5KHz /±5.0KHz @25KHz

FM SNR

-40 dB@12.5KHz /-45 dB@25KHz

Adjacent Channel Power

60 dB@12.5KHz /65 dB @25KHz

Audio Distortion

3%
