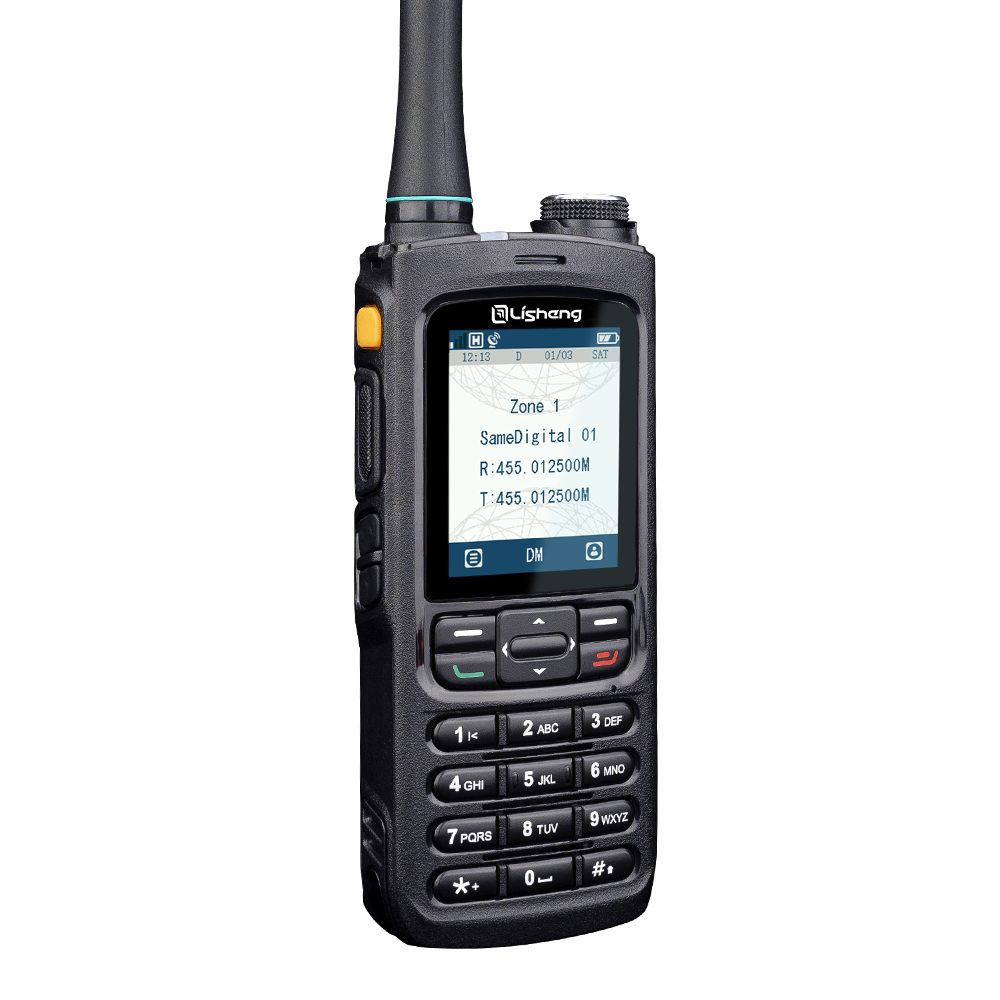

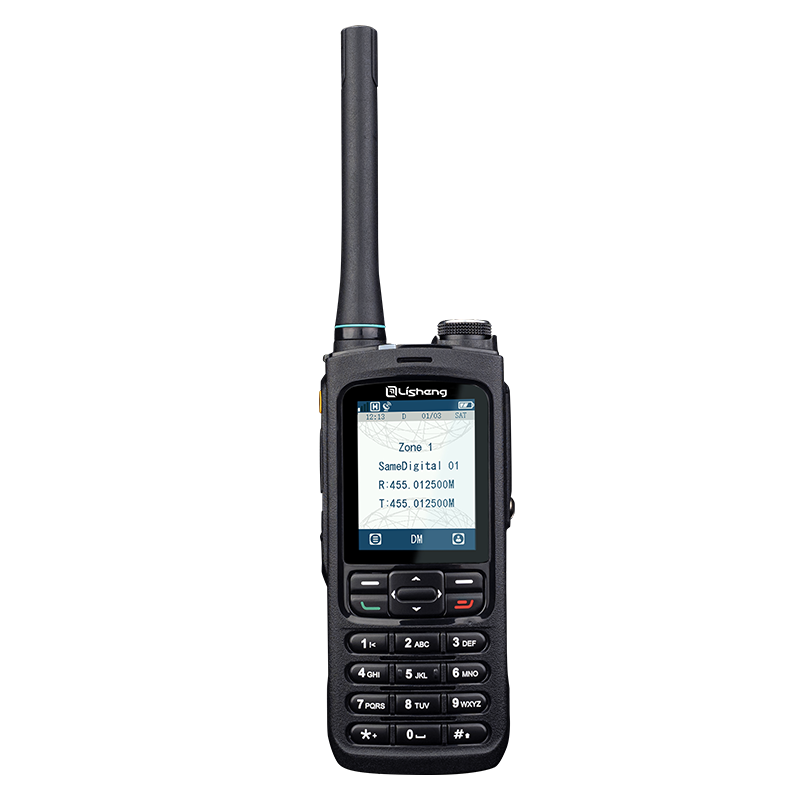

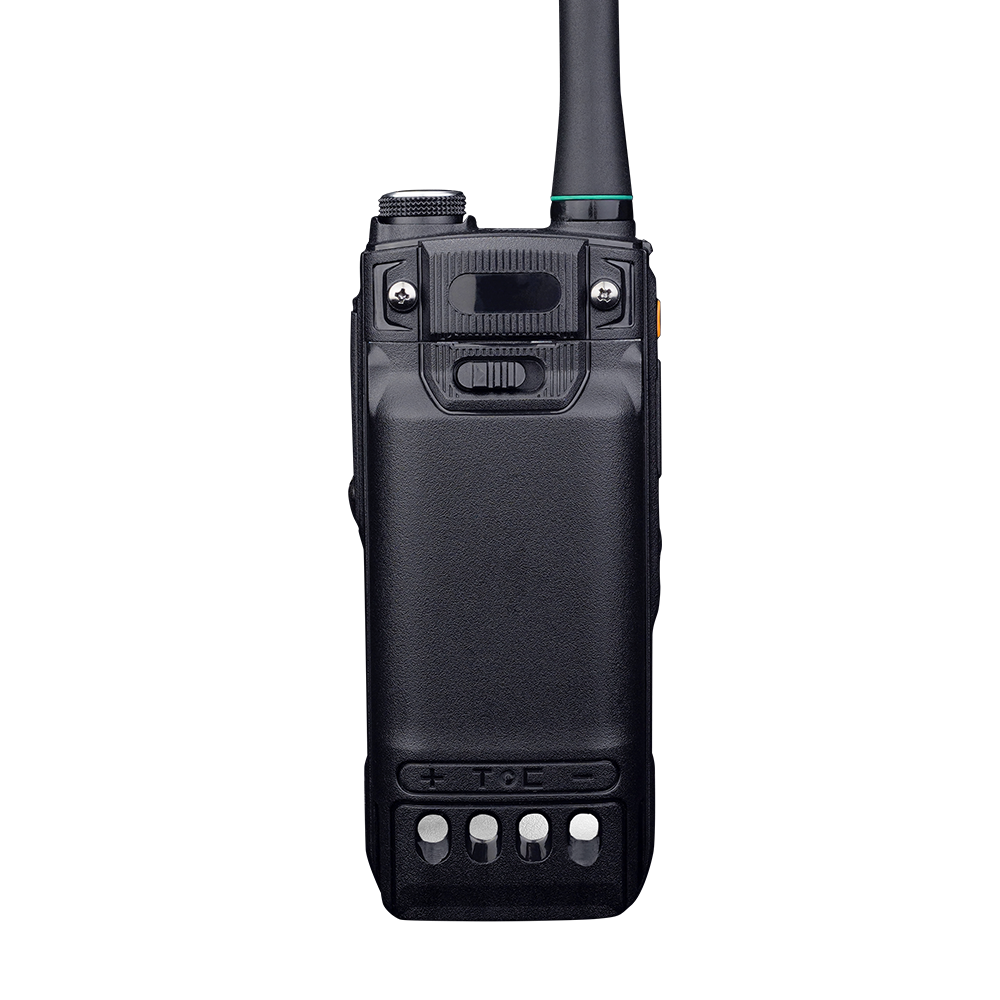

IP68 Digital Trunking Radio
Q8088
Meet the Q8088, our cutting-edge professional digital trunking radio that employs FDMA digital air interface protocol with advanced filtering, ensuring superior coverage, even in low RF signal areas. With a 6.25KHz ultra-narrow band channel and robust error correction,the Q8088 enables dependable long distance communication.
Product Orientation Map
Features
Specifications
Accessories

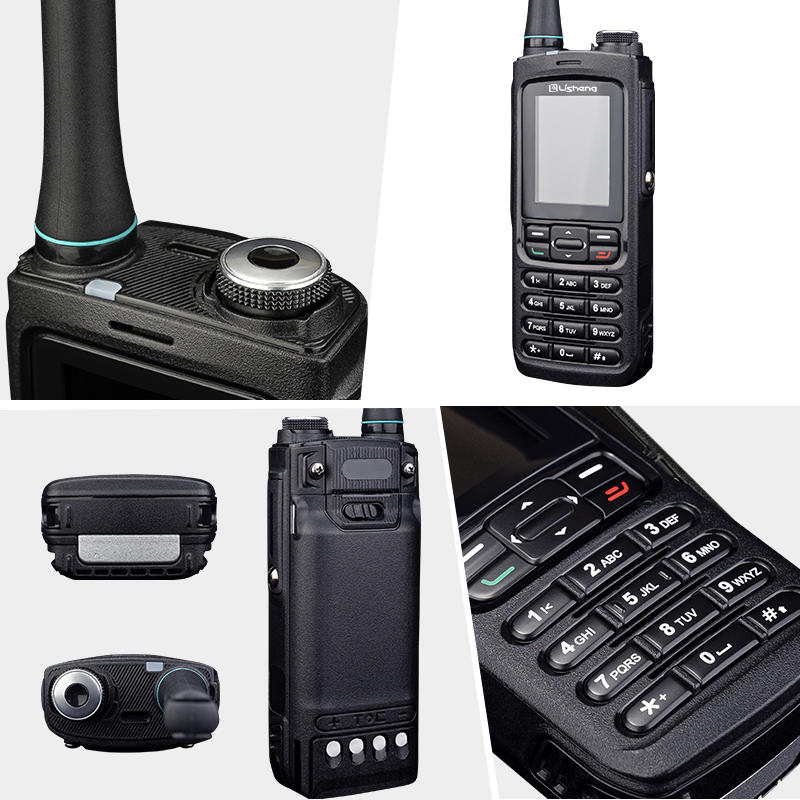

Appearance Introduction
Product Accessories
Antenna
Battery
Battery
Charger Pod
Charger
Hand Strap
Transmitter | |
RF Power | 1W (Low) / ≤5W (High) |
FM Modulation |
4K00F1D @ 6.25kHz / 8K0F3E @ 12.5kHz / 16K0F3E @ 25kHz |
Power Margin Variation | +2/-3dB (under Extreme Conditions) |
FSK Error | <2% |
4FSK Transmission | ≤1×10-4 |
4FSK Modulation Frequency Deviation Error |
≤10.0% |
Occupied Bandwidth (PDT/DMR) | ≤8.5kHz |
FM Hum and Noise | 40dB @ 12.5kHz / 45dB @ 25kHz |
Adjacent Channel Power | ≤-60dB @ 12.5kHz / ≤-70dB @ 25kHz |
Transient Adjacent Channel Power |
≤-50dB @ 12.5kHz / ≤-60dB @ 25kHz |
Power Rise/Fall Time |
≤1.5ms |
Audio Distortion |
≤3% @ 40% Deviation |
Spurious Emission |
≤-36dBm (9kHz~1GHz) ≤-30dBm (1GHz~12.75GHz) |
Audio Response |
+1 ~ -3dB |
Receiver | |
Analog Sensitivity |
0.22μV(FM @ 12dB SINAD) 0.18μV(typ.) (FM @ 12dB SINAD) 0.3μV(FM 20dB SINAD) |
Digital Sensitivity | 0.20μV (Typical) (BER 5%) |
Adjacent Channel Selectivity | 60dB @ 12.5kHz; 70dB @ 25kHz |
Intermodulation Rejection | 60dB @ 12.5kHz; 60dB @ 25kHz |
Blocking Performance | 90dB @ 12.5kHz; 90dB @ 25kHz |
Spurious Response rejection | 70dB @ 25kHz; 70dB @ 25kHz |
Co-Channel Interference Suppression |
6dB @ 12.5kHz |
Rated Audio Output Power | 1.0W / 16Ω (5% Distortion) |
Conducted Spurious Emission |
<-57dBm(9kHz~1GHz) <-47dBm(1GHz~12.75GHz) |
General | |
Frequecy Range |
136~174MHz,350~400MHz,400~470MHz |
Channel/Zone Capacity | 2000 Channels / 64 Zones |
Channel Spacing | 6.25kHz / 12.5 kHz / 25 kHz |
Frequency Stability | ±1.0ppm |
Operating Voltage | 7.4V |
Battery Capacity | 2000mAh |
Vocoder Type | AMBE+2TM / NVOC |
Antenna Impedance | 50Ω |
Dimension |
5.27”H x 2.28”W x 1.26” D (134 x 58 x 32mm) |
Weight |
9.38oz (266g) |
Ingress Protection (IP) Rating |
IP68 |
