AP3500 NXDN Digital Mobile Radio

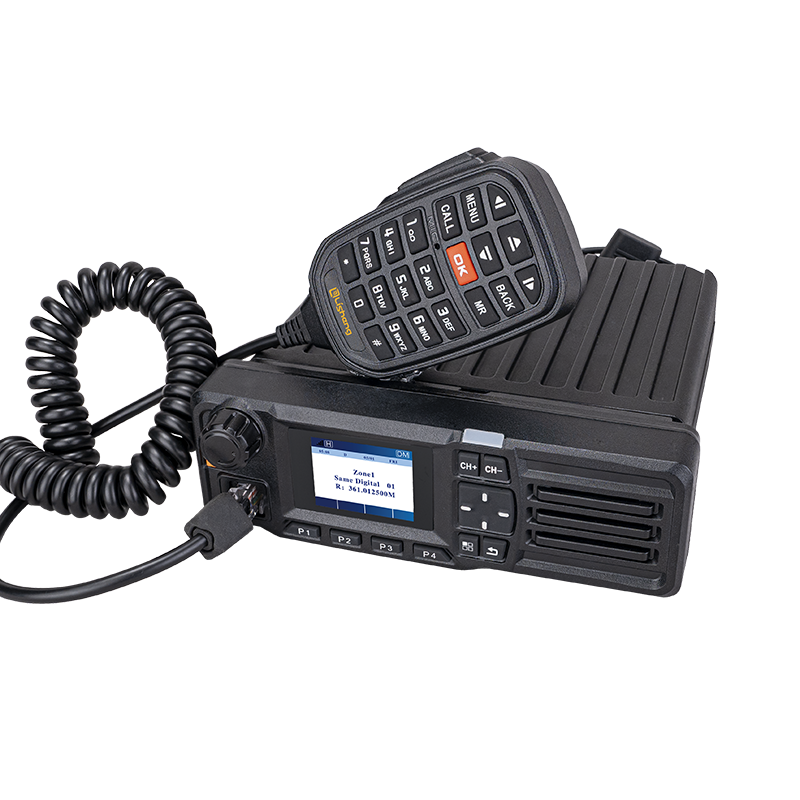

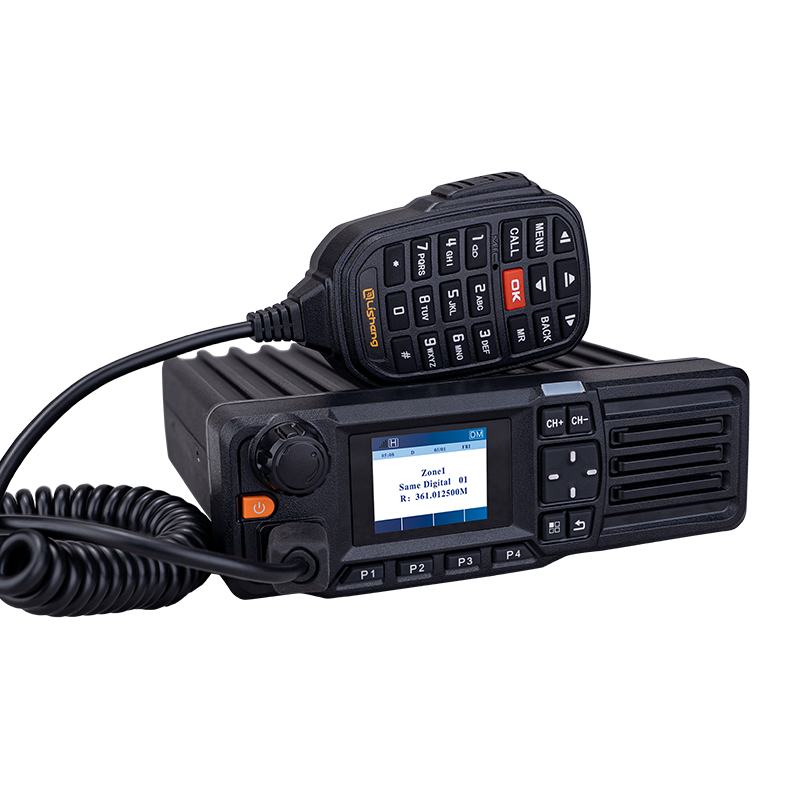

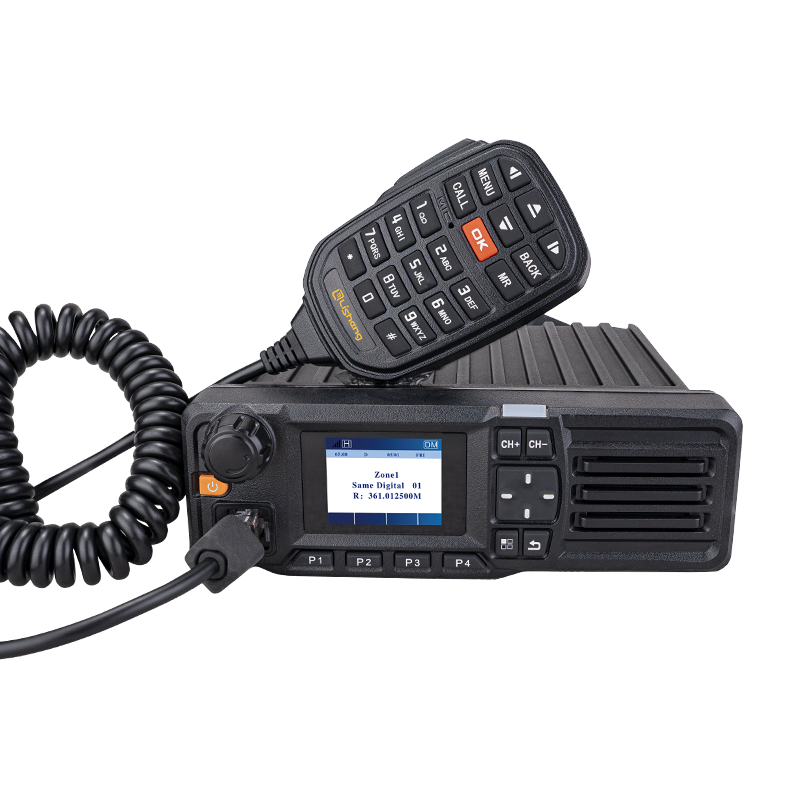

AP3500
AP3500 NXDN provides user-friendly interface and keypad for easy operation. Support GPS/Beidou/GLONASS positioning, which can be realized GPS/Beidou/GLONASS position information transmission, combined with command and dispatch software, can be intuitively view the location of people on the map and make voice calls with them.
Product Orientation Map
Features
Specifications
Accessories
NXDN DIGITAL AIR INTERFACE

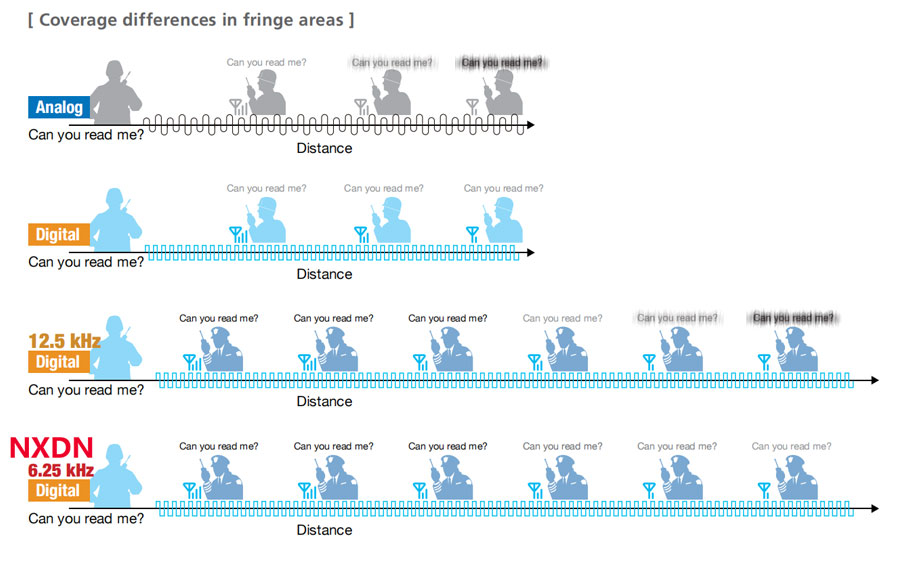

AP3500 radios employ NXDN, an FDMA digital air interface with AMBE+2™ voice coding technology, with forward error correction and unique filtering to obtain superior coverage even at weak RF signal strengths.

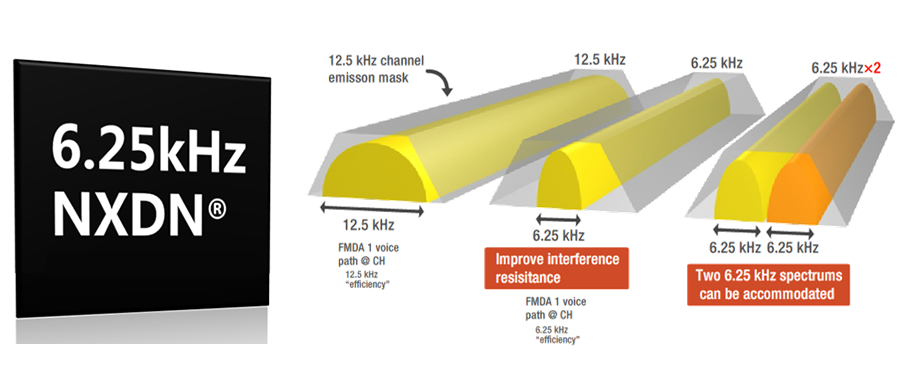

The NXDN air interface is capable of fitting into both 12.5 kHz and 6.25 kHz bandwidth channel operation to ensure rock-steady frequency stability, exceeding all regulatory and emissions mask requirements in all bands.
Analog / Digital Mode
AP3500 supports digital DMR and analog two modes to realize analog to digital upgrade and it can compatible with users'ooriginal analog devices.In the harsh communication conditions, digital mode has better performance than analog mode, and the voice is much clearer. 12.5kHz frequency bandwidth can offer two-channels voice communication, effectively improving the spectrum utilization efficiency.
NXDN Convention / NXDN Trunking
AP3500 supports 2 digital modes: DMR Convention and DMR Trunking
DMR Digital Trunking system is a large scale communication system that can cover a large area and communicate with multiple groups of users at the same time. n the trunking mode, AP3500 can offer rich calling applications through single-call, group call, group call and other calling functions.
Dual-slots
The free slot can be allocated to enhance frequency efficiency and timelyresponse under emergency.
Beidou/GPS Positioning (Optional)
AP3500 has built-in Beidou /GPS positioning module, which can support Beidou /GPS positioning data transmission under both conventional and trunking modes. In the trunking mode, the dispatcher can directly communicate with target communication units which selecting from the map
Reliable and Durable
AP3500 can meet with IP54 standard, its structure is reliable and durable. lt has outstanding performance on Shock AND Vibration and other harsh operating environment.
Application fields
Highways, Urban comprehensive law enforcement, Transportation and other fields which requiring long-distance communication and high reliability.

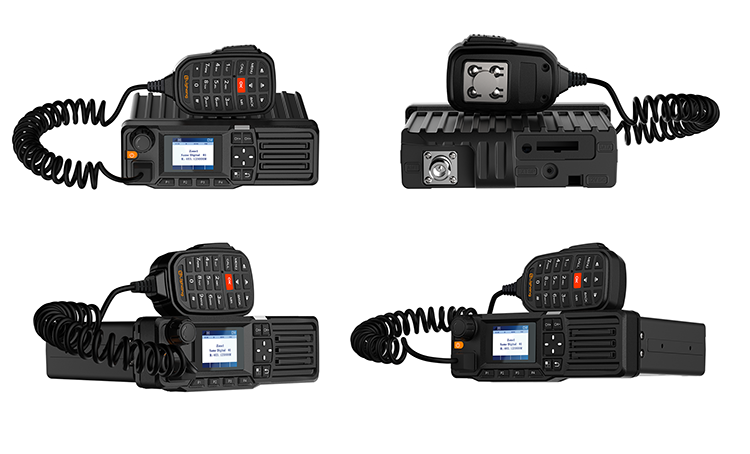

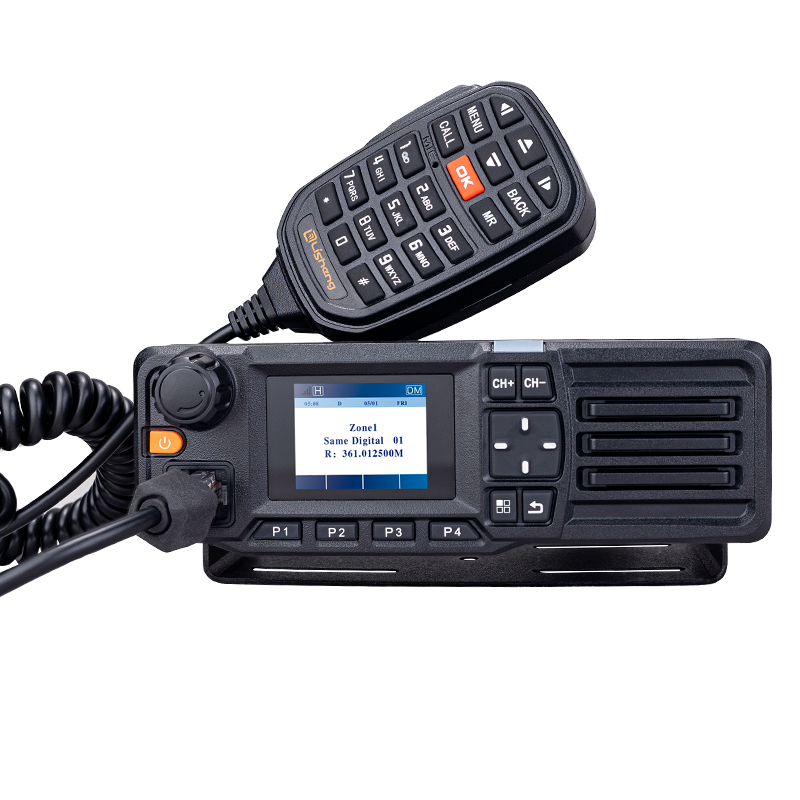

Appearance Introduction
Product Accessories
Transmitter | |
Output Power |
High power:25W Low power:10W |
Channel interval |
Analog:12.5kHz / 25kHz Digital:6.25kHz |
Transmitting |
-36dBm(≤1 GHz) -30dBm(>1 GHz) |
FM Modulation |
16K0F3E @25kHz 8K0F3E @12.5kHz 4K00F1D @6.25kHz |
Audio Distortion | ≤1% @ 40% deviation |
Audio Response | +1 ~ -3dB |
FM Sound and noise |
40dB @12.5KHz 45dB @25KHz |
Number FSK Error | <2% |
Neighboring power |
60dB @12.5KHz 70dB @25KHz |
Receiver | |
Sensitivity Simulation |
0.22μV(FM@12dB SINAD) 0.18μV(typ.) (FM@12dB SINAD) 0.3μV(FM20dB SINAD) |
Sensitivity Number | 0.30μV(typ.) (@ 5% BER) |
Adjacent Channel Selectivity |
60dB @ 12.5kHz 70dB @ 25kHz |
Inter-modulation |
65dB @ 12.5kHz 65dB @ 25kHz |
Block |
90dB @ 12.5kHz 90dB @ 25kHz |
Spurious Response rejection |
70dB @ 25kHz 70dB @ 25kHz |
Rated Audio Powe | 3W / 8Ω |
Conducted Emission Spurious |
<-57dBm |
Rated Audio
Output Power |
5W(Built -in) |
Output Power | 5W(4Ω External) |
General | |
Frequecy Range |
136—174MHz/ 350—390MHz/ 400—470MHz
|
Channel Interval |
Analog:12.5kHz /25kHz Digital:6.25kHz |
Channel Capacity | 500/ 32 zones |
Power Aupply Requirements |
13.6V±15% |
Stand-by Current | <0.6A |
Receiving Current | <2A |
Transmitting current |
10W <4A 25W <7A |
Vocal Code Type | AMBE+2 |
Frequency Stability | ±1.0ppm |
Antenna Impedance | 50Ω |
Screen Pixel | 160*128px |
Dimension | 45×160×160mm |
Weight | about 1.5kg |
Operating Temperature | -30℃ ~ +60℃ |
Product accessories
