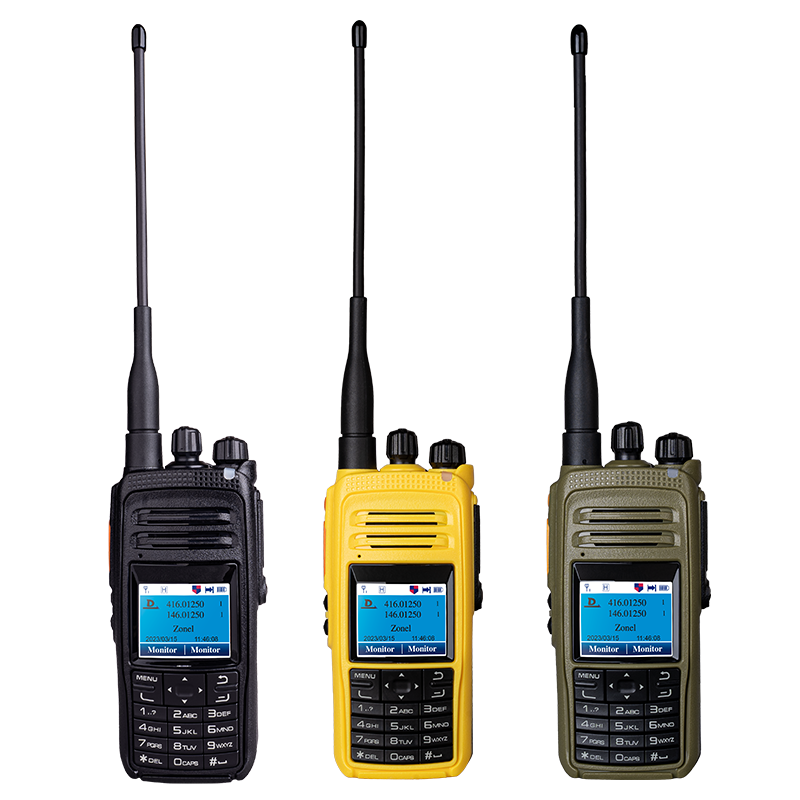

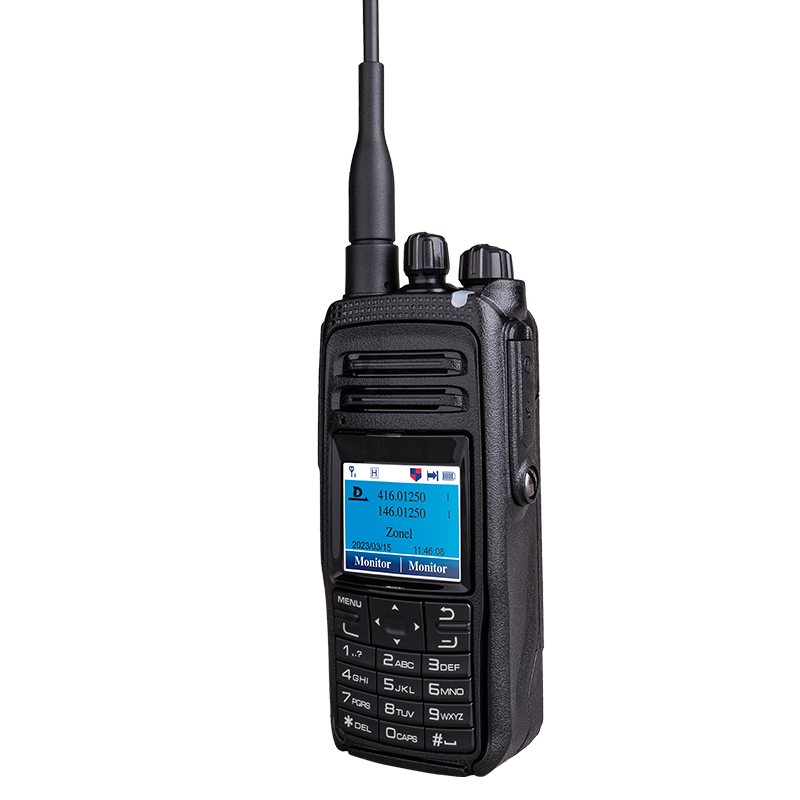

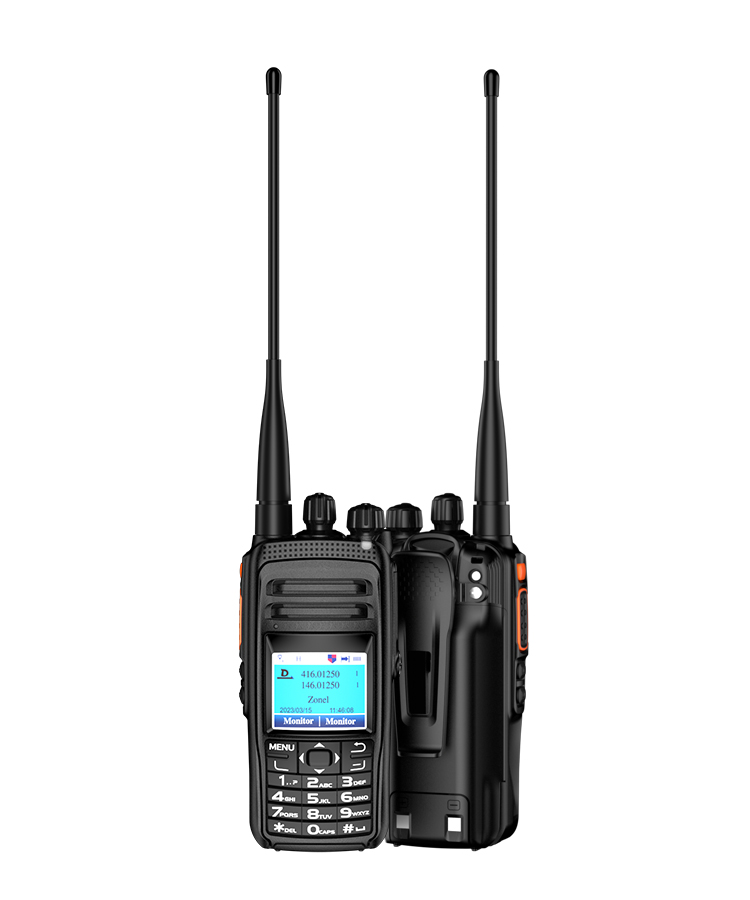

DM-R89 Dual Band DMR Portable Radio

DM-R89

The DM-R89 is a professional DMR radio, it can supports VHF and UHF dual bands or single band as your request, which can provide more efficient and more reliable communication with loud and clear audio, powerful battery, rugged and reliable, it can use across multiple environments and industries.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

DMO 2 Slot / DMRA Direct Mode

The free slot can be allocated to enhance frequency efficiency and timely response under emergency.

Digital & Analogue Mode Compatible

Support both Digital and Analogue modes to ensure a smooth transition from analogue to digital with dual mode functionality.

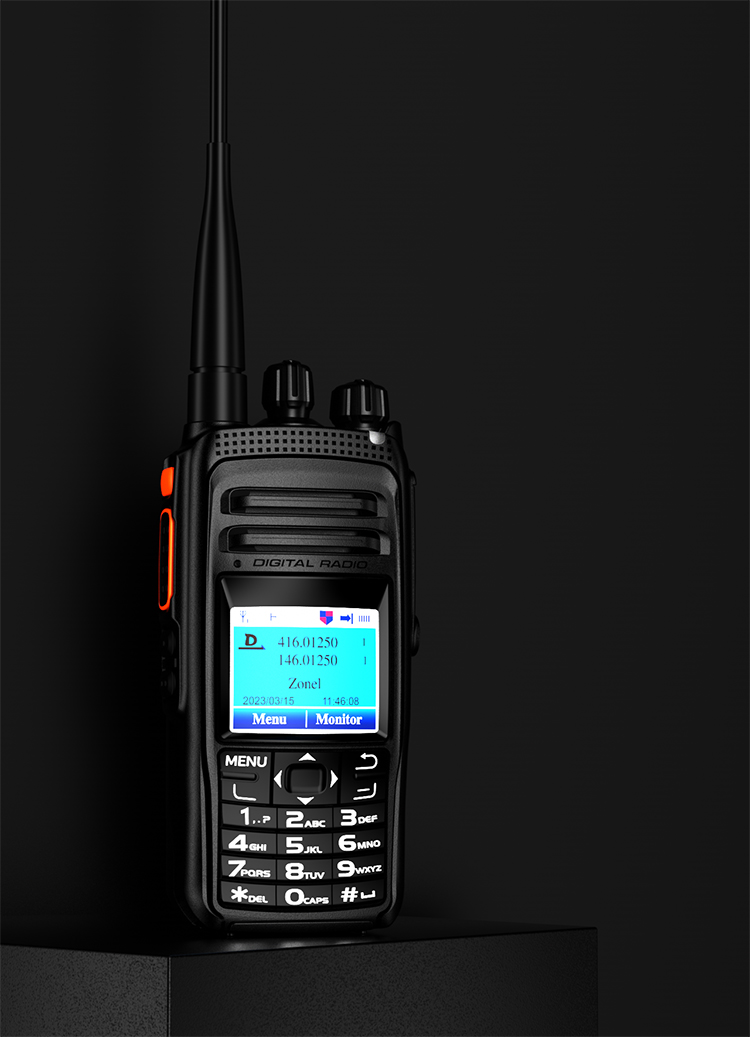

1.77 inch Color Screen

It carry with a large screen and intuitive UI to make the operation more easier and efficient.

Background Noise Cancellation

The advanced Background Noise Cancellation technologies, ensure the same clear voice within the communication coverage.

Louder and Clearer Audio

It carry with an optimized powerful loudspeaker that can help users to hear clear sounds even in a noisy environment. With the advanced background noise cancellation technologies, no matter what noise environment the calling party is in, it will ensure the called party hears a clear sound.

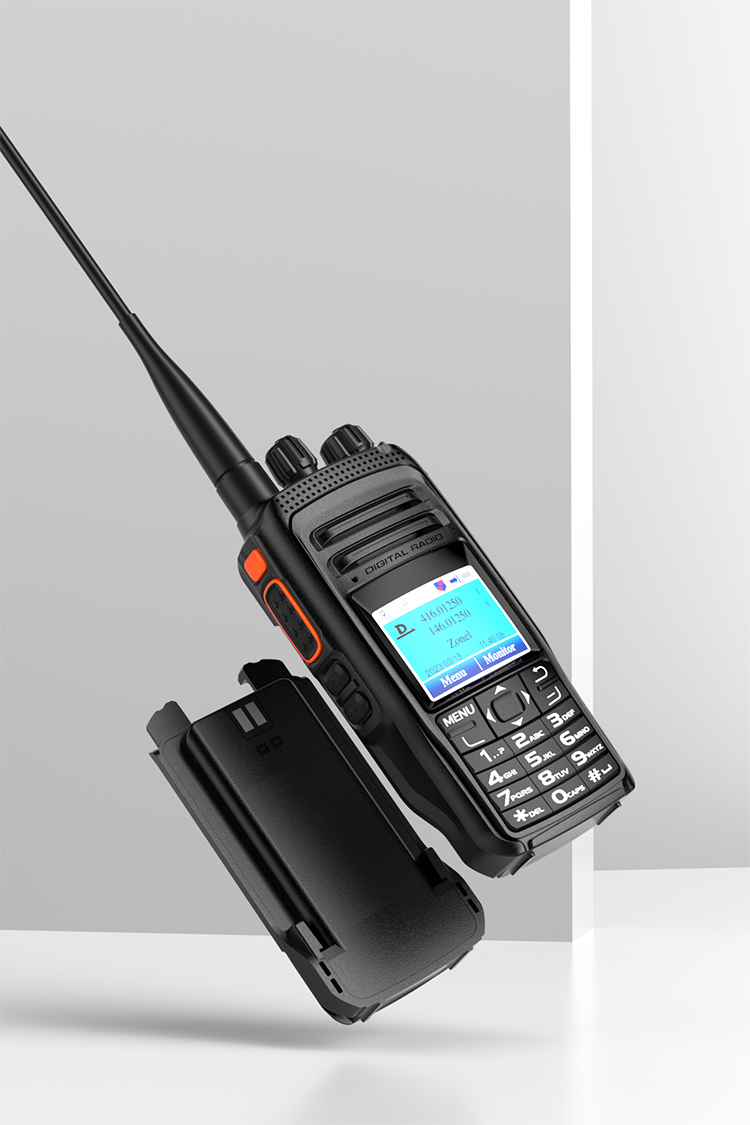

Longer Battery Life

With optimized product design and technologies to reduce the power consumption, to offer you much longer battery life, ensure the critical voice communication.

Rugged and Reliable

With IP54 rated, the radio can use across multiple environments and industries.

Different Call Types

Supports individual call, group call, emergency call or broadcast call on all digital channels.

General Features

  • ● Digital Mode / Analog Mode
  • ● Announce the Channel Number
  • ● VOX
  • ● Battery Save
  • ● High/Low power adjustable
  • ● Power on Password
  • ● Date and real-time clock display
  • ● Channels Scan / Priority channel scan
  • ● Talk Around
  • ● Programmable functions for side key

Digital Mode

  • ● Single call /Group call/ All call
  • ● Encryption
  • ● Emergency Alarm
  • ● Remote Monitor
  • ● Radio Detection
  • ● Address book / Calling records / SMS message
  • ● Remote Kill / Remote Revive
  • ● Work Alone function
  • ● One Touch feature for voice messages and data
  • ● DMO 2-Slot / DMRA Direct Mode

Analog Mode

  • ● DTMF
  • ● Remote Kill (via. DTMF signaling)
  • ● 1750 Hz
  • ● Wide/Narrow bandwidth selective
  • ● Modulation Type: FM
  • ● CTCSS/DCS
  • ● Busy Channel Lock-out
  • ● Tail Tone Eliminate

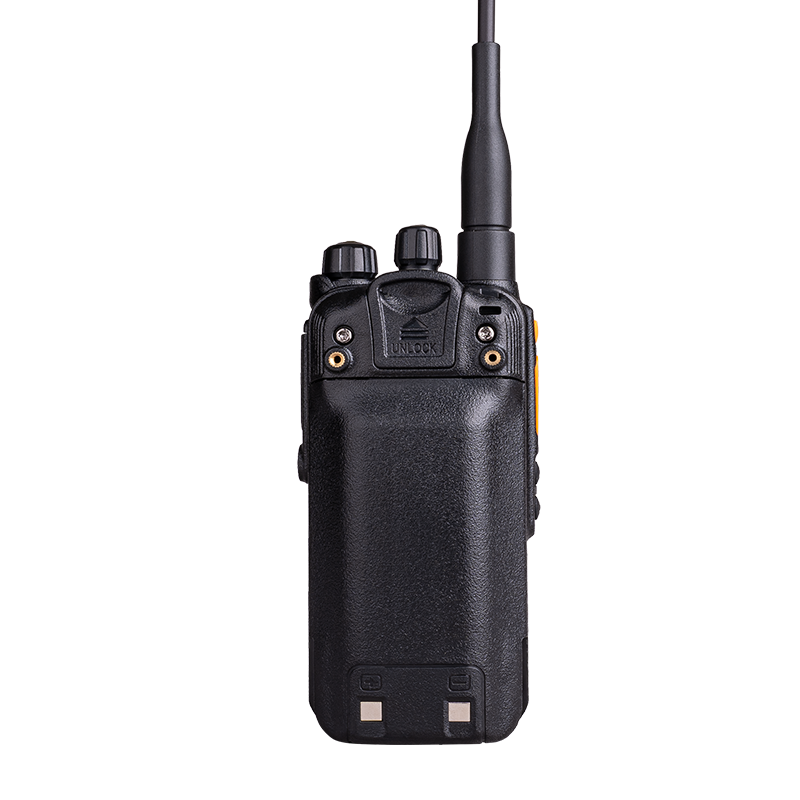

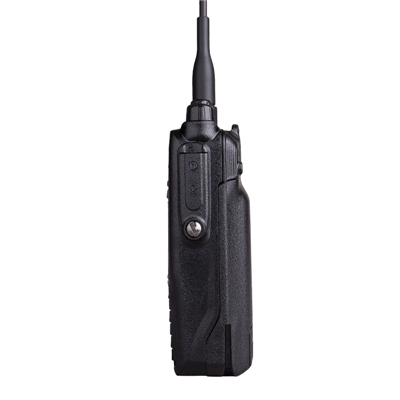

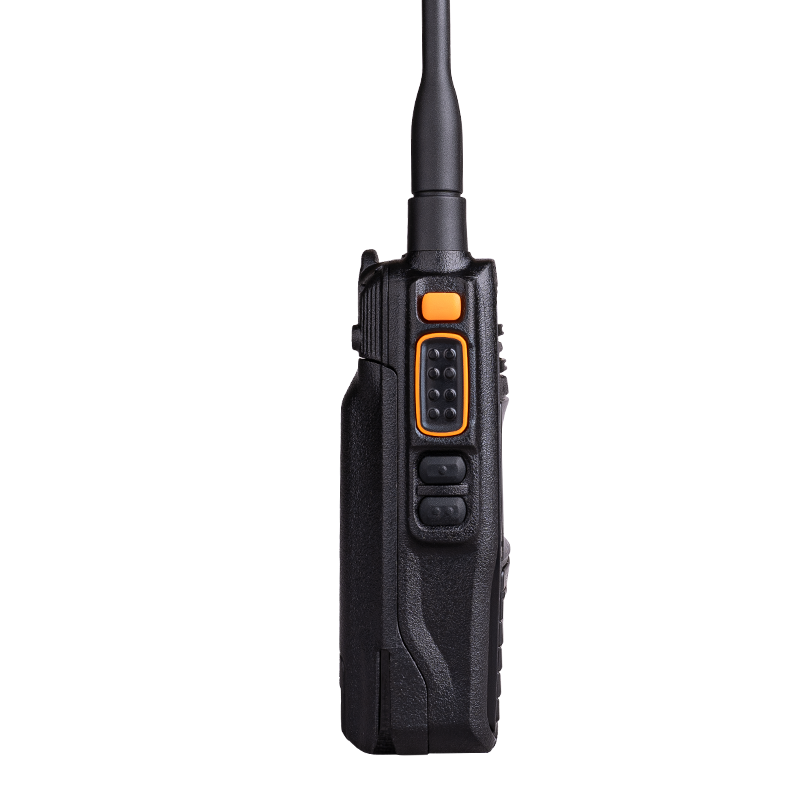

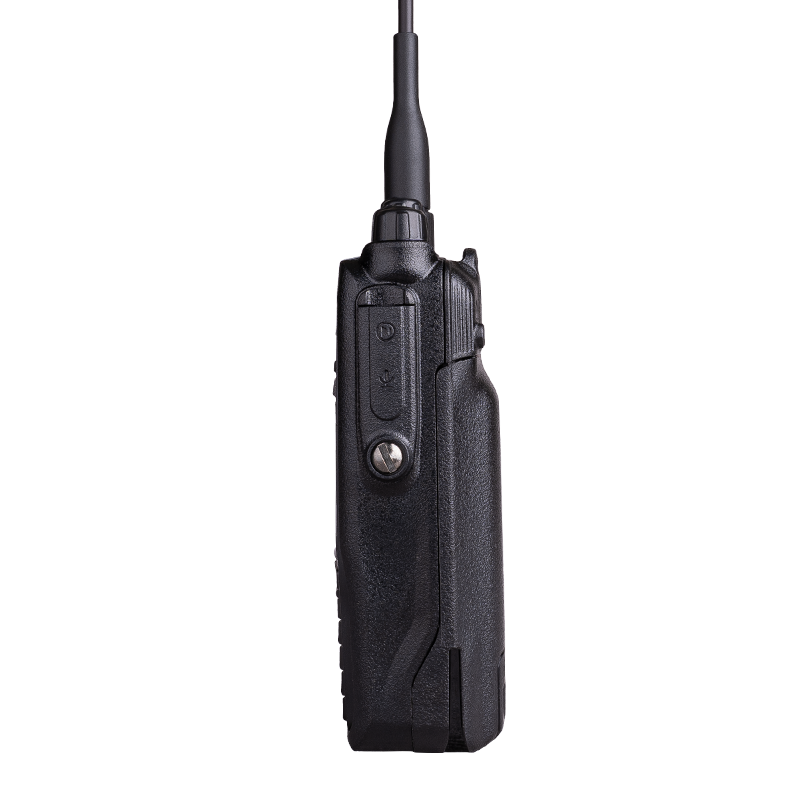

Appearance Introduction





Product Accessories

  • Antenna

    Antenna

  • Belt Clip

    Belt Clip

  • Hand Strap

    Hand Strap

  • Battery

    Battery

  • Charging Pod

    Charging Pod

General
Frequency UHF:400-470MHz /350-400/450-520MHz
VHF:136-174MHz
Channel capacity 3000
Channel space 12.5kHz/25KHz(Analogue)
 12.5kHz(Digital)
Frequency stability ±1.0ppm
Operating voltage 7.4V
Battery capcity 2200mAh
Battery life(5:5:90) Analogue: 12 hours
Digital: 16 hours
Standby time 28 hours
Dimension 120mm*55mm*37mm
Weight(with battery
and antenna)
319g
LCD Display 1.77 inch
Digital protocol ETSI TS 102 361-1, -2, -3
Vocoder AMBE+2™
Reciever
Analog sensitivity 0.35uV/-116dBm(20 dB SINAD),
0.22uV/-120dBm(Typical)
Digital sensitivity 0.3uV/-117.4dBm (BER 5%)
 0.7uV/-110dBm  (BER 1%)
Adjacent vhannel
Selectivity
TIA603C:55dB@12.5KHz
ETSI: 55dB@12.5KHz
Common vhannel
Rejection
-12dB@12.5KHz
Spurious response
rejection
TIA603C:60dB
ETSI:60dB
RX spurious
radiation
-57dBm@ < 1GHz,
-47dBm@>1GHz
Blocking 80dB
Rated audio power 1W
Audio response +1dB ~-3dB
Rated Audio
Distortion
≤3%
Transmitter
Output power Low:1W, High: 4W(UHF)
FM Noise -40dB@12.5KHz
TX Spurious
radiation
-36dBm@ < 1GHz,
-30dBm @> 1GHz
Adjacent channel
power
-60dB@12.5KHz
FM Modulation 12.5KHz:11K0F3E
25KHz:16K0F3E
4FSK digital
modulation
12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE
Modulation limiting 2.5KHz@12.5KHz
Free Time-slot
power
-57dBm
Audio response +1~-3dB
Rated audio
distortion
≤3%
Environmental
Operating
temperature
-25℃ ~ +60℃
Storage
temperature
-40℃ ~ +85℃
