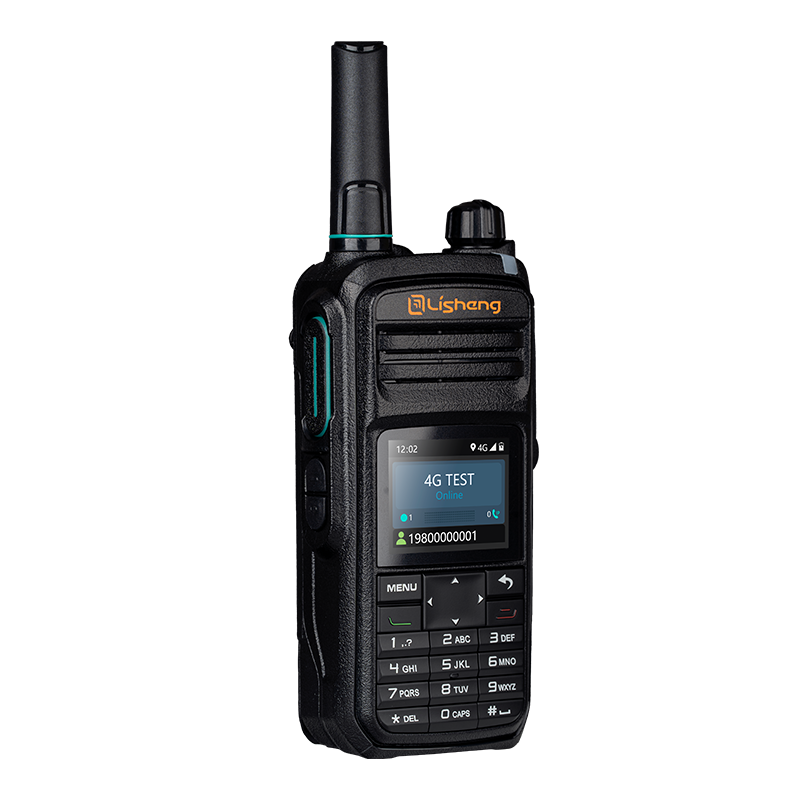

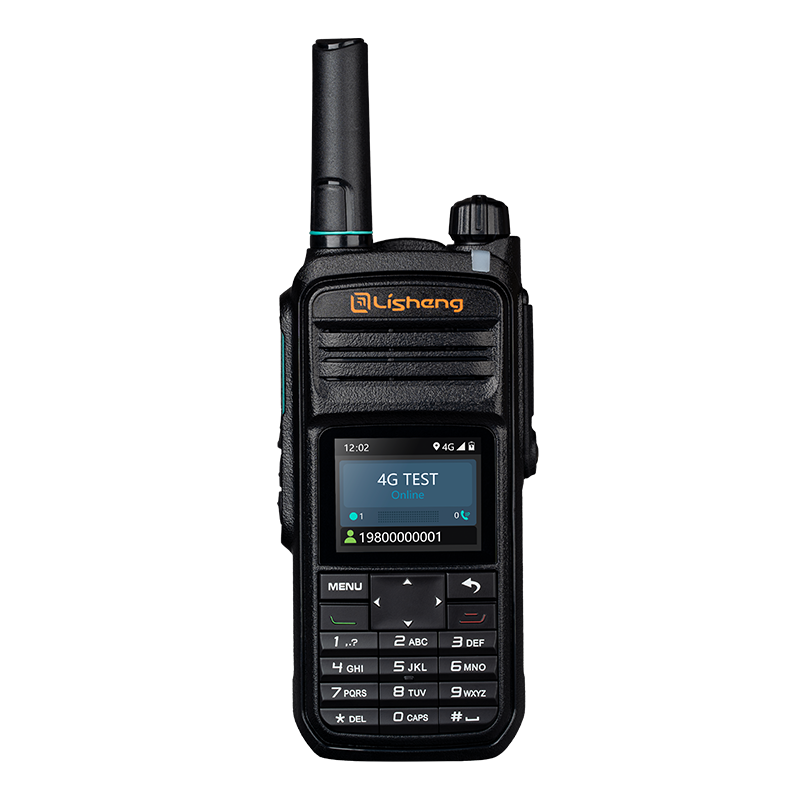

Q168 4G/LTE Intrinsic Safety Push-to-Talk over Cellular (PoC) radio
Q168
The Q168 is a Intrinsic Safety Push-to-Talk over Cellular (PoC) radio. With 1.77 inch large display, GPS navigation and IP65 protection standard. The device offers nationwide coverage over 4G/LTE networks for your PTT communications with a battery capacity of 4400mAh and easily meet the battery needs of long day operations.
Product Orientation Map
Features
Specifications
Accessories
Features
• Dialing phone function
• Group call, group call, single call function
• Super coverage, roaming nationwide
• Communication confidentiality, safe and reliable
• Quick charging technology, making it more convenient to use
• Excellent antenna, strong signal
• Ultra -sensitive Mike sound collection, making sound collection more real and casual
• Audio software cavity compensation technology, clearer and more real sound

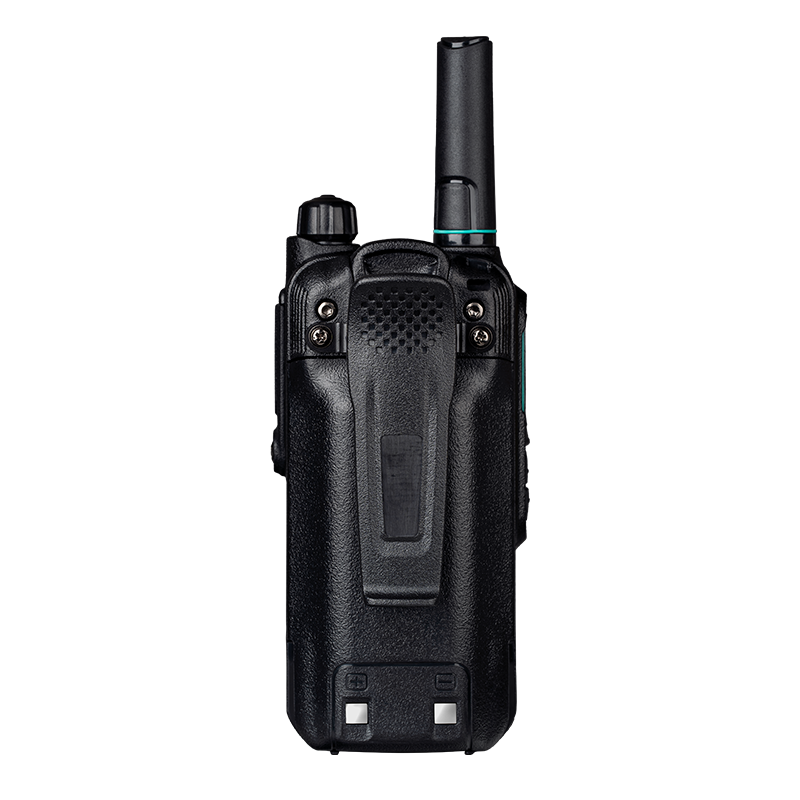

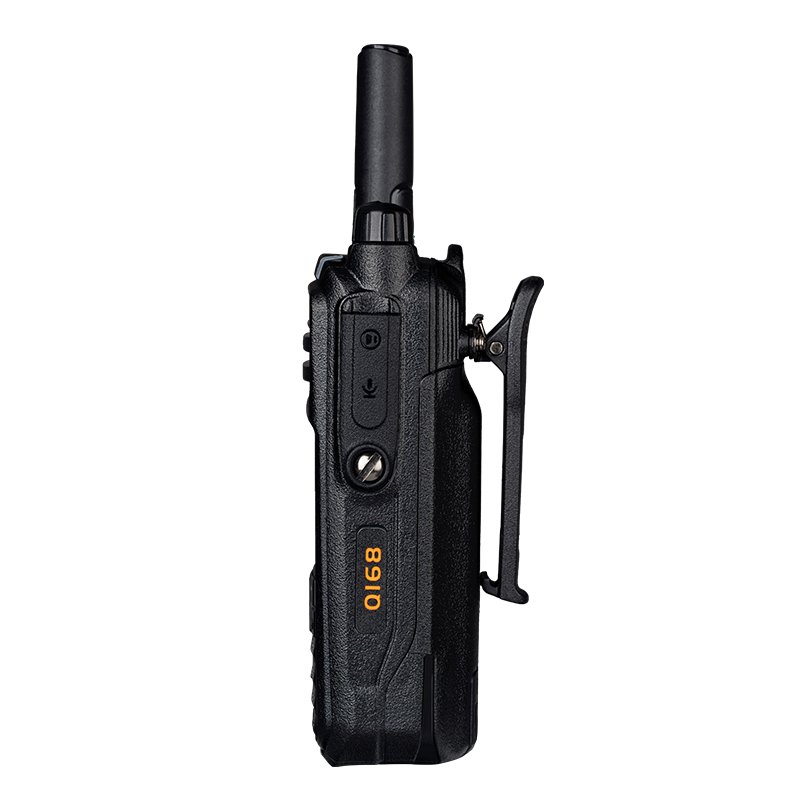

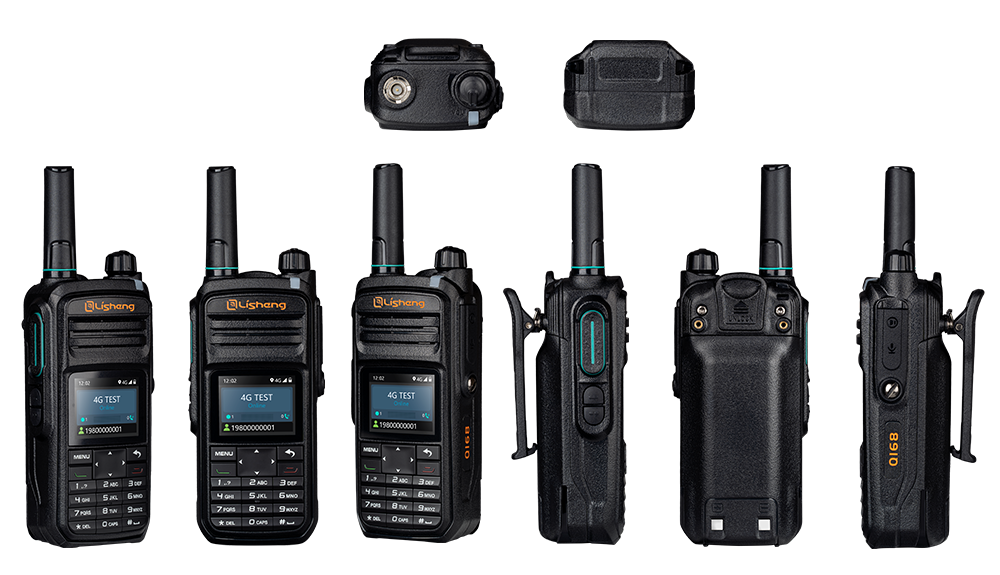

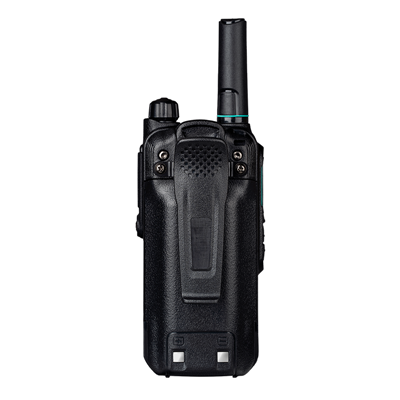

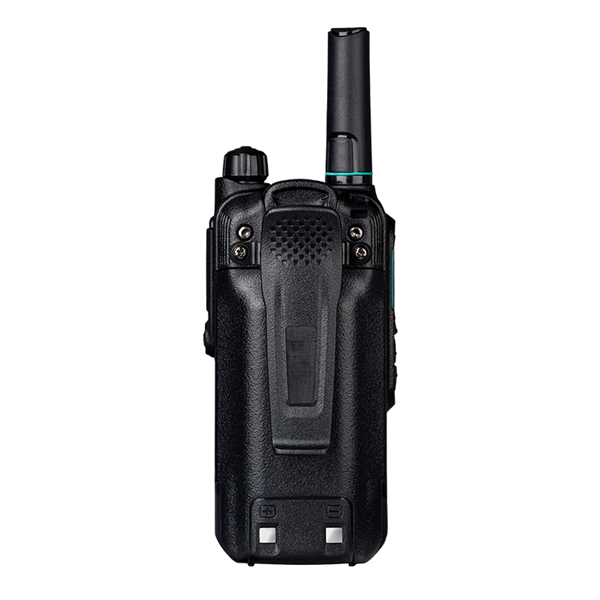

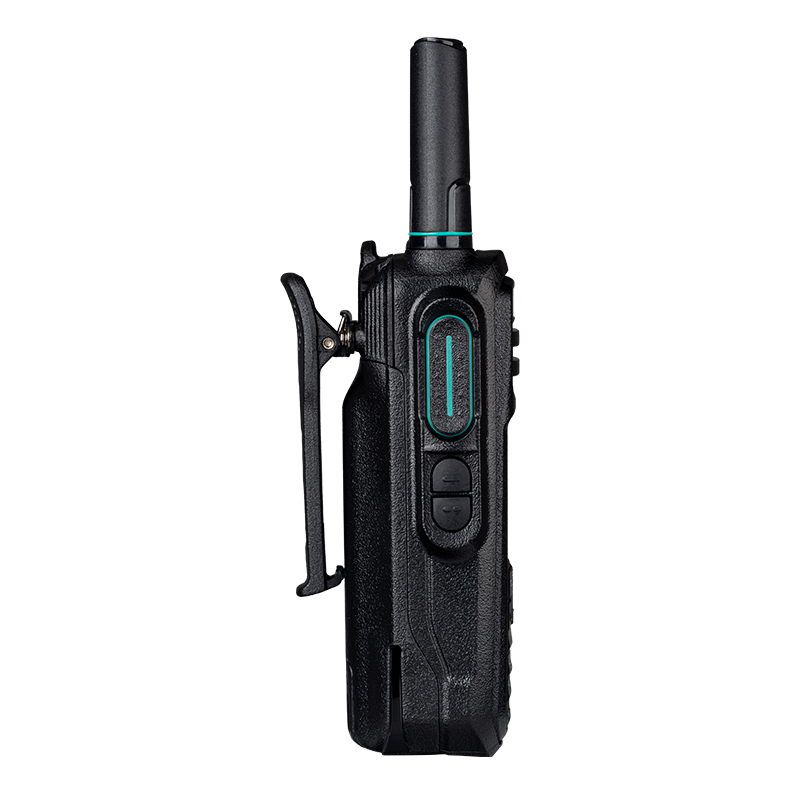

Appearance Introduction
Product Accessories
Antenna
Belt Clip
Hand Strap
Adaptor
Battery
Type | Item | Requirement | Remark | |
Network | System |
GSM:B3/8;
CDMA:1X BC0;
CDMA2000:
1x EVDO BC0 RevA
; TD-SCDMA:B34/39 WCDMA:B1 ; TDD_LTE:B38/39/40/41; FDD_LTE:B1/3/5/8 |
||
Bearer | LTE | CAT 4 | TDD CAT4 | |
Dimensions | 120mm*55mm37mm | |||
Weight |
Whole machine weight (standard battery and antenna) |
about 217.2g | ||
Home screen | Size(inch) | 1.77 | ||
Resolution | 160*128 | |||
TP | Specification | Capacitance | N/A | |
Connectors | Charger | NO | ||
Micro-USB | Micro-USB | YES | Data transmission | |
SIM Card | Single SIM card | |||
Memory card | NO | |||
Battery | Type | Li-polymer | ||
Volume(mAh) | 5200mAh | |||
Charger current |
1000mA |
|||
Chargeing Time | <= 6 Hours | |||
Standby time(h) | Without platform data, the platform is different from standby different standby | |||
Memory | ROM | ROM | 4GB | |
RAM | RAM | 4Gb LPDDR2 | ||
Sound | MIC | MIC | 1 | |
Line-Control earphone | YES | |||
Speaker | YES | |||
Speaker PA | YES | |||
GPS | GPS | YES(Optional) | 混合定位 | |
Beidou | Beidou | |||
LED Light | 对讲状态指示(红翠绿双色灯) |
LED light 三种状态: 快闪(1秒一次)、 慢闪(3秒一次)、 长亮 |
开机状态 | 开机:按开机键,翠绿灯常亮5秒后,翠绿灯慢闪 |
网络状态指示 |
翠绿灯快闪:正在注册网络状态; 翠绿灯慢闪:已成功注册网络,进入待机状态; |
|||
通话状态 |
翠绿灯长亮: 主呼(单呼/组呼/临时组)状态; 红灯常亮: 被呼状态 |
|||
电量指示 | 1.待机:翠绿灯慢闪 | |||
Antenna | Main antenna | 棒状 | ||
Other request | Back clip | Support | ||
Operating temperature | Temp | -10℃ ~ 60℃ | ||
Waterproof level | Specification | IP54 | ||
High | 1.2m |
Product accessories
Antenna
Belt Clip
Hand Strap
Adaptor
Battery
