AP25 NXDN Dgital Portable Radio
AP25
AP25 NXDN, an FDMA digital air interface with AMBE+2™ voice coding technology, with forward error correction and unique filtering to obtain superior coverage even at weak RF signal strengths. Support Bluetooth 4.2 standard access, support Bluetooth write frequency and Bluetooth call, the function makes the versatility of the product more extensive.

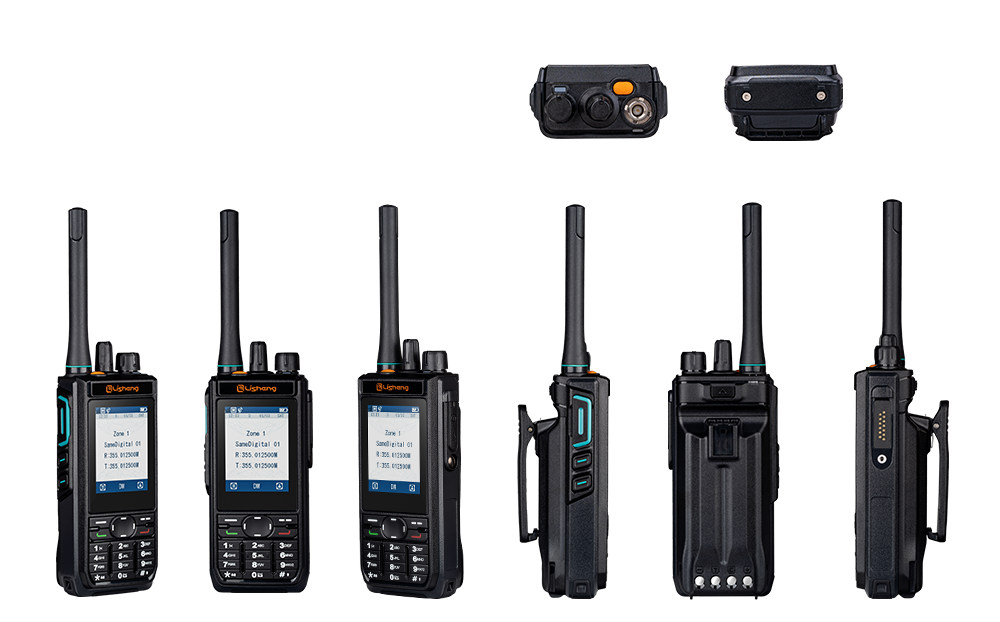

Product Orientation Map
Features
Specifications
Accessories
The radio adopts 2.4 inch color LCD display, which makes the display information clearer even under strong light. Ergonomic design greatly improves the accuracy and comfort of operation.
NXDN DIGITAL AIR INTERFACE

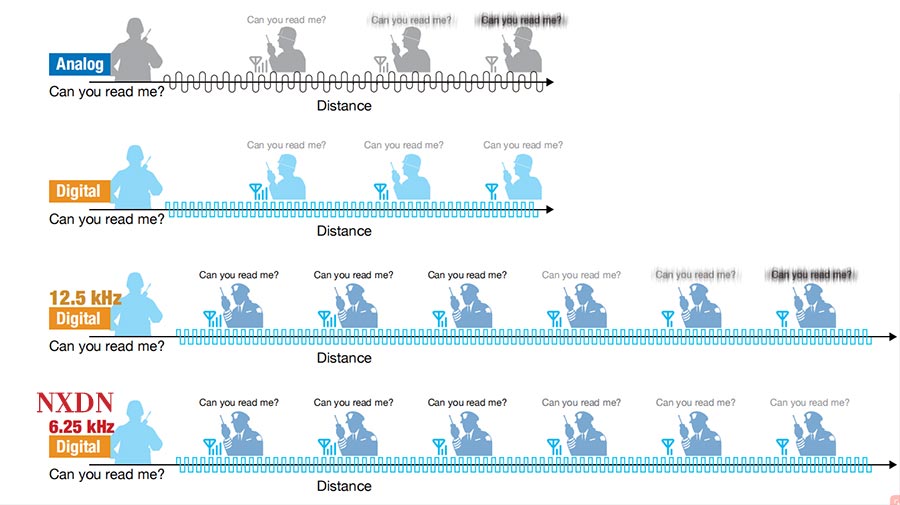

AP25 radios employ NXDN, an FDMA digital air interface with AMBE+2™ voice coding technology, with forward error correction and unique filtering to obtain superior coverage even at weak RF signal strengths.

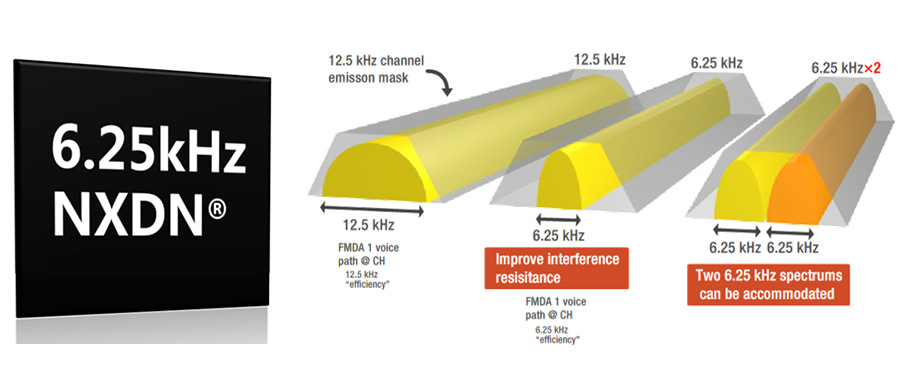

The NXDN air interface is capable of fitting into both 12.5 kHz and 6.25 kHz bandwidth channel operation to ensure rock-steady frequency stability, exceeding all regulatory and emissions mask requirements in all bands.
● Support multiple working modes
Trunking Mode (TM)
It can support PDT/DMR/NXDN digital trunking communication system service, realizes voice single call, group call, broadcast call and rich trunking communication functions.
Conventional mode (DM/RM)
Fully support digital and analog services in the direct (DM) mode;
Fully support digital and analog services in the relay (RM) mode;
● Support multiple standard protocols
It can support PDT/DMR/NXDN digital conventional, cluster standard communication protocol, convenient to meet the different needs of customers use environment and requirements to enable users to smoothly transition from analog communication system to digital communication system.
● Bluetooth voice / data service (Optional)
Support Bluetooth 4.2 standard access, support Bluetooth write frequency and Bluetooth call, the function makes the versatility of the product more extensive.
● GPS/ Beidou/GLONASS positioning mode (Optional)
Support GPS/Beidou positioning, which can be realized GPS/Beidou position information transmission, combined with command and dispatch software, can be intuitively view the location of people on the map and make voice calls with them.
● Reliable and durable quality
The quality of the radio meets the national military standard and the IP67 industrial protection standard, thus ensuring that the product structure is sturdy and durable, wear-resistant, antiaging, and can exert excellent performance in a variety of harsh working environments

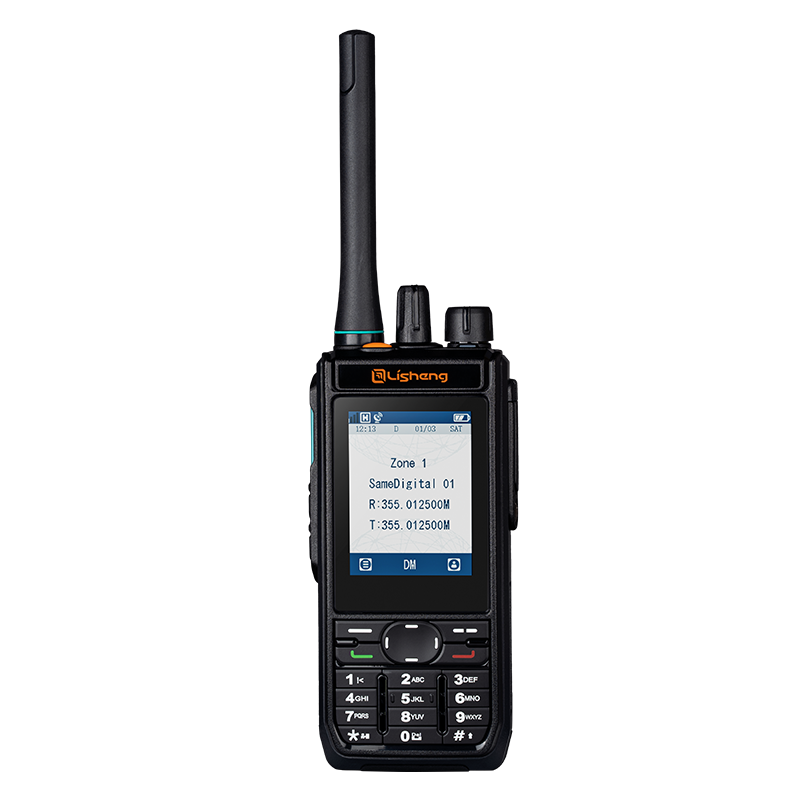

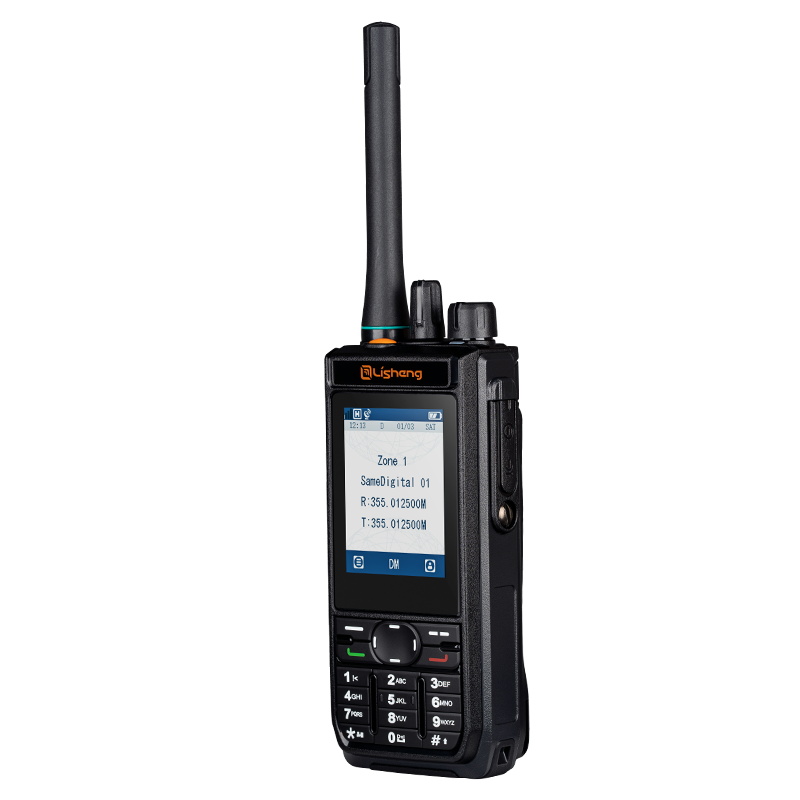

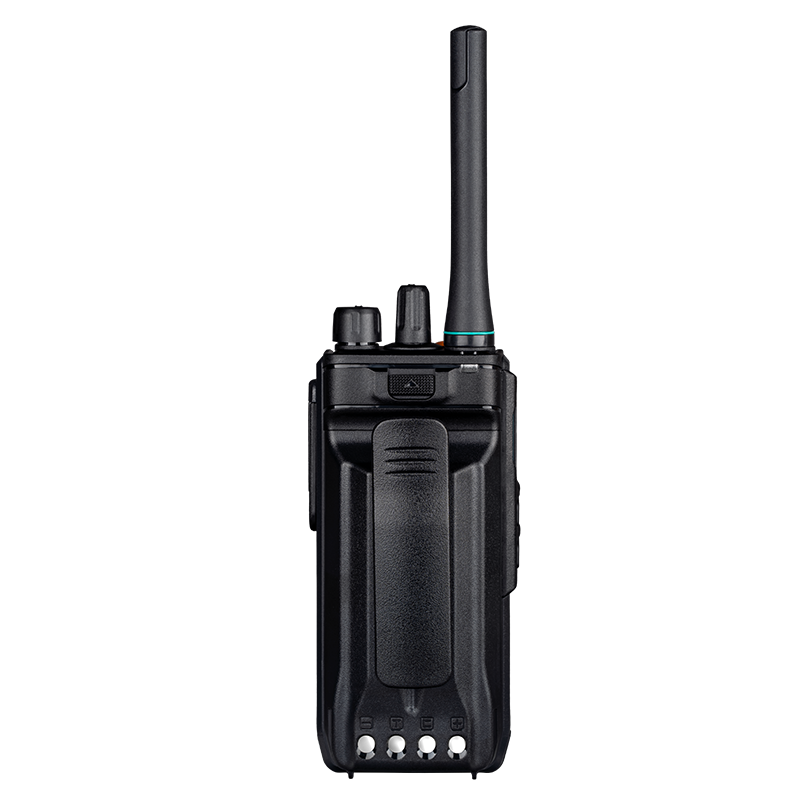

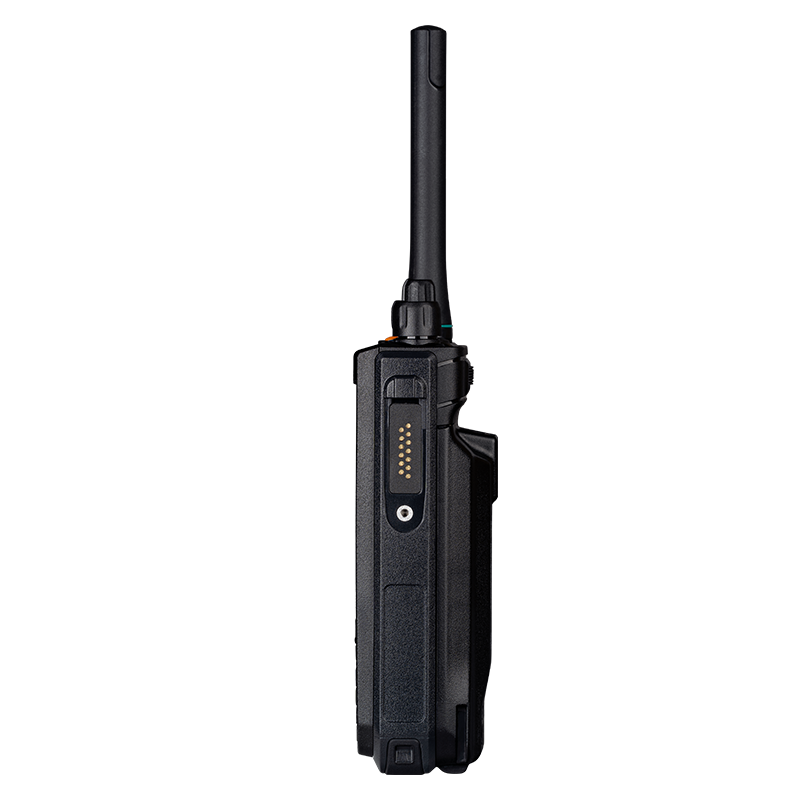

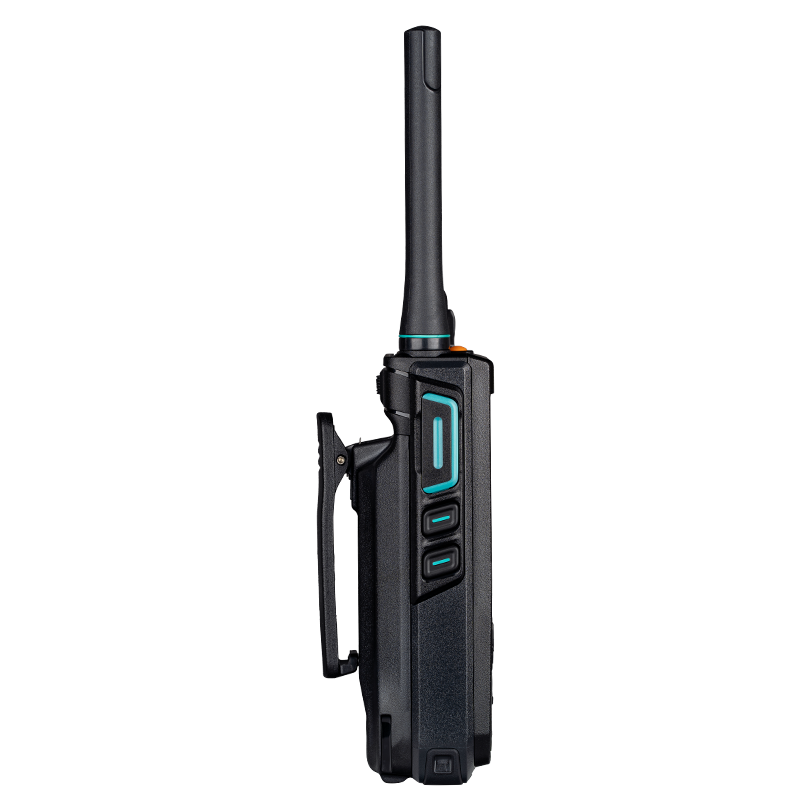

Appearance Introduction
Product Accessories
Hand Strap
Antenna
Battery
Belt Clip
Charger Pod
Transmitter | |
Output Power | High power: 5W Low power: 1W |
Channel interval | 6.25kHz / 12.5kHz / 25kHz |
Transmitting |
-36dBm(≤1 GHz) -30dBm(>1 GHz) |
FM Modulation |
16K0F3E @25kHz 8K0F3E @12.5kHz 4K00F1D @6.25kHz |
Audio distortion | ≤1% @ 40% deviation |
Audio response | +1 ~ -3dB |
FM Sound and noise |
40dB @12.5KHz 45dB @25KHz |
字FSK Error | <2% |
Neighboring power |
60dB @12.5KHz 70dB @25KHz |
Receiver | |
Sensitivity simulation |
0.22μV(FM @ 12dB SINAD) 0.18μV(typ.) (FM @ 12dB SINAD) 0.3μV(FM 20dB SINAD) |
Sensitivity number | 0.20μV(typ.) (@ 5% BER) |
Adjacent Channel Selectivity | 60dB @ 12.5kHz; 70dB @ 25kHz |
Inter-modulation | 65dB @ 12.5kHz; 65dB @ 25kHz |
Block | 90dB @ 12.5kHz; 90dB @ 25kHz |
Spurious Response rejection | 70dB @ 25kHz; 70dB @ 25kHz |
Rated Audio Power | 1.0W / 16Ω |
RX spurious radiation | <-57dBm |
General | |
Frequecy Range |
136-174MHz/350-390MHz/400-470MHz |
Channel interval | 6.25KHz / 12.5KHz / 25KHz |
Channel Capacity | 500 channel / 32 zone |
Power supply requirements | 7.4V |
Battery | 3000mAh(Li-lon) |
Vocal code type | AMBE+2/NVOC |
Frequency Stability | ±1.5ppm |
Antenna impedance | 50Ω |
Dimension | 55×34×130mm |
Weight | ≤280g |
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
Product accessories
Hand Strap
Antenna
Battery
Belt Clip
Charger Pod
