UT880 Analog Mobile Radio

UT880

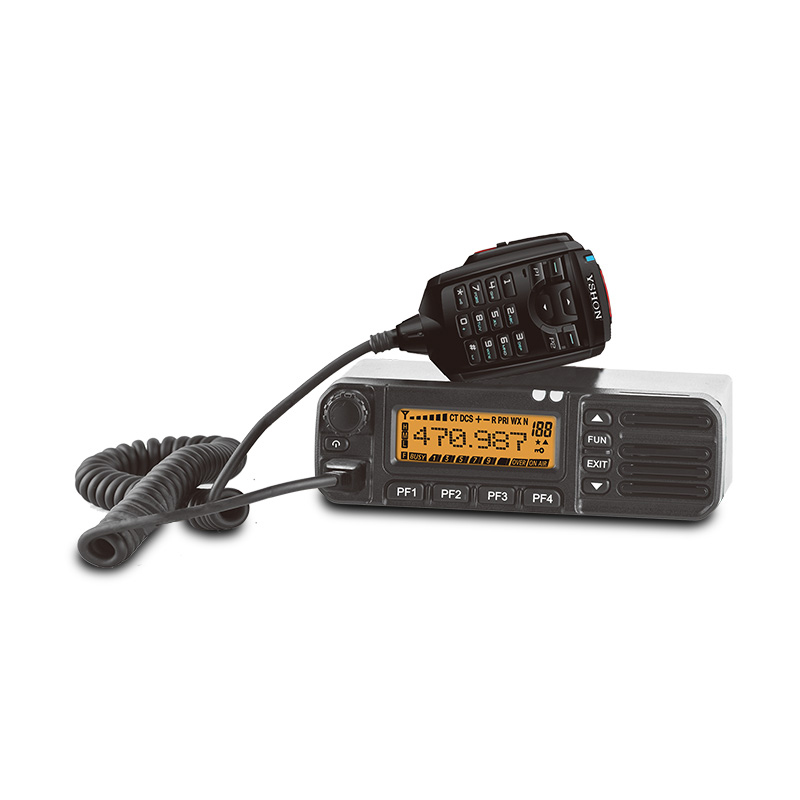

UT880 is a professional mobile radio, which is designed to be installed into a vehicle and connected to an external antenna mounted outside the automobile. It's flexible to adapt to different environments, keeping your people connected. Clear audio, high sensitivity, and excellent quality ensure efficient communication. This cost-effective mobile radio is with rich functions like DTMF, 2-Tone, 5-Tone, Scrambler etc., supply great help in moving communication.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

• Output Power: H: 50W/40W, M: 25W, L: 10W

• CTCSS/DCS: Non-standard CTCSS tones and DCS codes are available

• Emergency Alarm Function

• 1750 Tones

• Audio Compandor

• Talk Around function

• Remote Stun, Remote Kill, Remote Revive

• Busy Channel Lockout

• Keypad Locked

• Squelch Tail Elimination

• Time-out-timer (TOT)

• Manual/PC Programmed

• Multiple Scan Modes

• Software Read and Write Password

• Versatile Encryption Signaling: DTMF Encode & Decode , 2-Tone, 5Tone

• Networking: Individual Call, Group Call, All Call

• Scrambler Function

• PTT ID

• SOS function

• Etc.

Appearance Introduction

Product Accessories

General
Frequency Range VHF: 136-174MHz
UHF: 350-390MHz
     or400-470MHz
     or450-520MHz
Channel Capacity 199
Channel Zone No. 32
Channel Spacing 25kHz/12.5kHz
Antenna Impedance 50Ω
Operating Voltage DC 13.8V±15%
Current Drain Standby mode ≤0.3A
Receiving mode ≤0.8A
Transmitting
mode
≤ 4A (10W)
≤6A (25W)
≤ 10A (50W)
Frequency Stability ±2.5ppm
Operating Temperature -30℃~+60℃
Dimension (H×W×D) 158×155×40mm
Weight 1.14 Kg
Transmitter
Carrier output power 50W/25W/10W
45W/25W/10W
Modulation Mode 16KΦF3E/11KΦF3E
Modulation Distortion ≤5%
Maximum Frequency
Deviation
≤5kHz/2.5kHz
Transmitting SNR ≥40/35dB
Spurious & Harmonics -36dBm<1GHz,
-30dBm>1GHz
Adjacent Channel Power ≤-70dB/≤-60dB
Receiver
Sensitivity
(12db SINAD)
≤0.20uV/≤0.25uV
Audio Power ≥1.0W
Audio Distortion ≤5%
Receiving SNR ≥45/40dB
Adjacent Channel
Selectivity
≥70dB/≥60dB
Spurious Response
Rejection
≥70dB
Inter-modulation
Rejection
≥65dB

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
