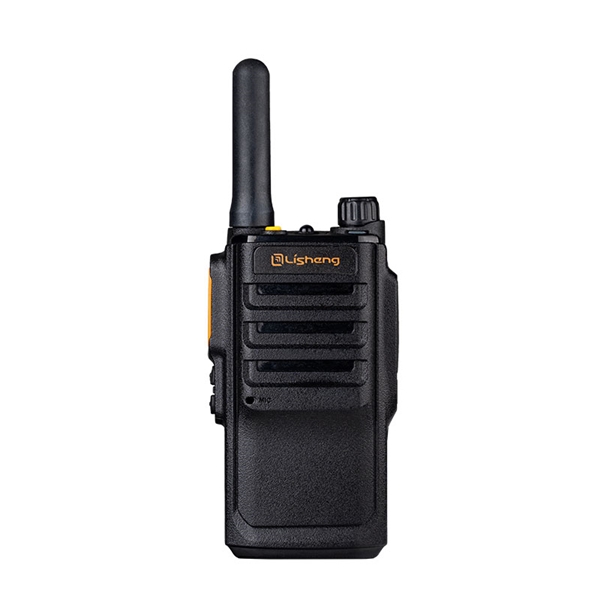

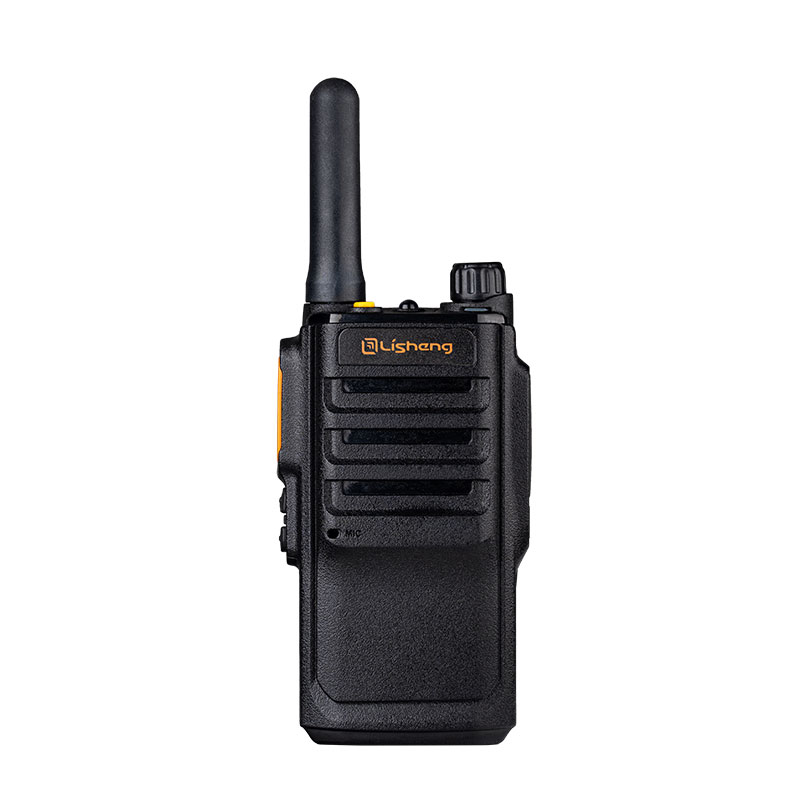

K68 FRS Walkie Talkie

K68

This professional analog two way radio in small size is comfortable to hold, the useful functions always help users keep online communication easily.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

Coding function

This machine has a code -breaking function. For others, there is a frequency -jumper intercom. When you know that the frequency of the intercom (the frequency can be measured by the frequency measurement), you can talk to the target intercom after the code is completed.

Specific steps: In the case of writing frequency software "learning frequency jump", press PTT key for 3 seconds during the startup process, and enter the accompanying lamp (red light) 3 times. The channel indicates that it has entered the coding mode. In this mode, the target intercom is launched. The machine receives the code, and the coding is successfully transmitted to the lights once with a prompt sound. After successful See if there is a successful code.

In the coding mode, short press the function "side keys 1" to indicate the code again. If the long time (greater than 10 seconds) is not successfully broken, please press the key to break the code again. Exit the code mode (withdrawing the codes, it will prompt Da Da Da Da three). (After the code is successful, the machine will automatically store the code value. You can read the data by reading frequency software to write other intercom.).

• If the opponent's internal machine is the simulation subcarculium jump code, it will start at 43, and the middle of 58 is an analog subcounter value

• If the opponent is a digital sub -sound: it is displayed as 24 bits from 80, and 23 bits starting from 00

Wireless replication function

This machine has wireless replication function. You can copy the frequency of frequency measuring the endless point of wirelessly to all other series of the same series of intercom.

The entire wireless copy is divided into two modes, one is the launch mode, and the other is the receiving mode. The launch mode indicates that the frequency point is copied, and the receiving mode indicates that the duplicated frequency point is preserved into its own frequency point.

Wireless replication operation method is as follows:

Step 1: 1) Switch the transmitter channel involved in the replication to the 2nd channel; 2) Switch all the participating intercom channels to the replication to the first channel.

Step 2: In the state of shutdown, the transmitter that needs to be copied will be pressed long and holding the "Side Key 1" (the key under the launch key). Launch mode.

Step 3: In the state of shutdown, press all the receiver that needs to be copied, and hold the "side keys 1" (under the key key) to turn on until the green light flashes and accompanied by the "Didi" prompt sound, indicating that the intercom enters the wireless wirelessly into the wireless wireless Copy receiving mode.

Step 4: After the transmitter and the receiver enters the corresponding mode, press the PTT key (launch key) of the transmitter (the launch key) of the transmitter. At this time Restart means a successful copy. After all the receiving machine is restarted, please restart the launch machine and copy it.

Notice:

1. The frequency of wireless replication can be copied in the same frequency.

2. The wireless ID code is to protect your frequency point, which is equivalent to the password. It needs to be consistent to copy.

3. If the wireless ID code is not right, the replication will not be performed.

4. Press the PTT to start copying, which will continue to send frequency points multiple times to prevent the receiver from leaking. If the receiver is not received successfully, press the PTT key again, and then copy it again (usually a round can be successfully copied).

5. The entire replication process lasts between 2-10 seconds.

6. Any intercom can be used as a transmitter or a receiver.

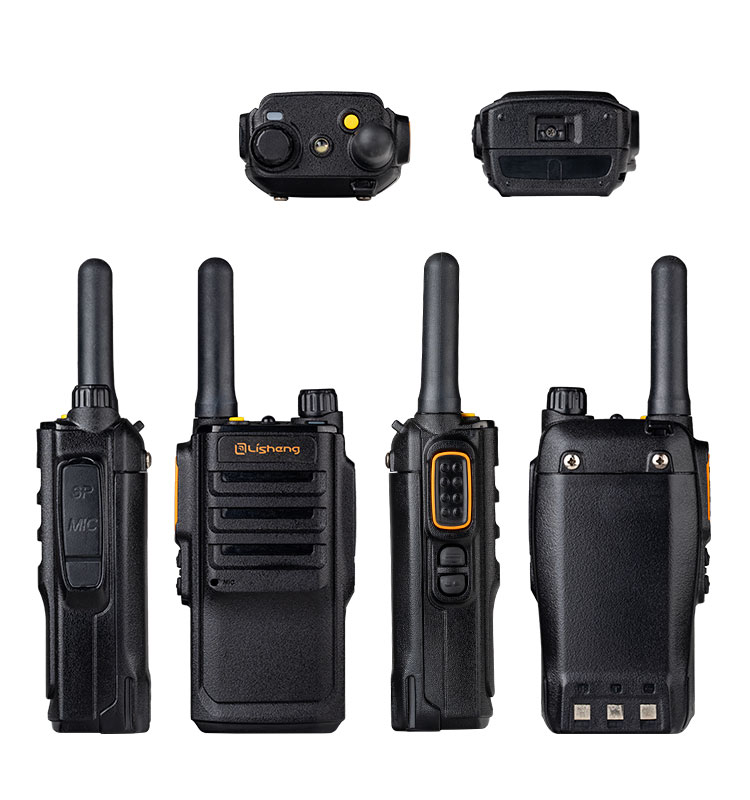

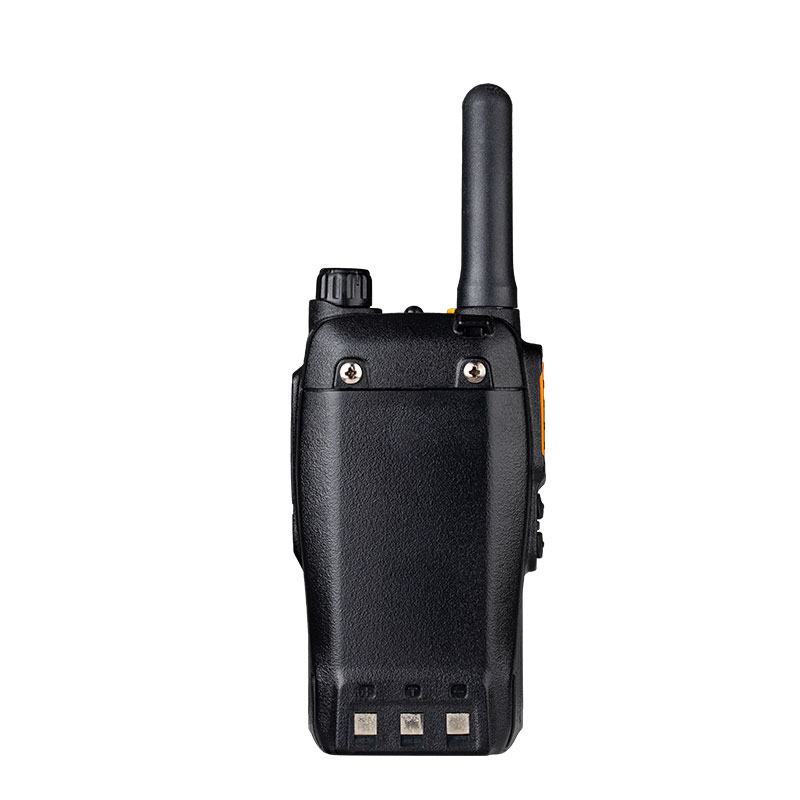

Appearance Introduction




Product Accessories

  • Belt Clip

    Belt Clip

  • Battery

    Battery

  • Charger

    Charger

  • Hand Strap

    Hand Strap

General
Frequecy Range UHF:400-470MHz
Channel Capacity 16
Channel interval 12.5kHz/25KHz
Normal Operating
Voltage
3.7V
Battery capacity 1000mAh
Battery life 105h
Dimension 100×49×32mm
Weight (Standard
battery and
antenna)
about 160g
Display No display
Receiver
RX Sensitivity ≤0.18uV/0.22uV
Adjacent Channel
Selectivity
≥60dB
Block ≥80dB
Inter-modulation ≥60dB
Spurious Response
rejection
≥70dB
Signal to noise
ratio
≥50dB
Receive audio
power
>0.5W
Audio Distortion ≤5%
Transmitter
Modulation
Mode
16kΦF3E/8kΦF3E
Modulation
Limiting
±5kHz/±2.5kHz
Audio Distortion ≤5%
Output Power 2W
Remaining
frequency
adjustment
-45dB
Neighboring
power
-67dB
Miscellaneous
and Harmony
-36dBm
(1GHz -30dBm)
1GHz
Environmental indicators
Operating
temperature
-30℃ ~ +60℃
Storage
temperature
-40℃ ~ +85℃
Impact and
vibration
According to
GJB 150-2009 and
MIL-STD-810
C/D/E/F/G

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
